Thermosetting Plastic Injecti/Injection Mould/Moulding Machine 140ton for Products

Product Description

Specification of D-RI140 injection machine
1. Product details:
2. Technical data of D-RI140

SPECIFICATION

D-RI 140

A

B

C

INJECTION UNIT

SCREW DIAMETER

mm

38

42

45

24.3

22

20.5

SCREW L/D RATIO

L/D

SHOT

cm3

193

235

270

VOLUME(THEORETICAL)

246

176

213

INJECTION WEIGHT(PS)

g

128

156

179

INJECTION RATE

cm3/s

205

170

147

INJECTION PRESSURE

MPa

SCREW SPEED

rpm

190

CLAMPING UNIT

CLAMP FORCE

kN

1400

380

OPEN STROKE

mm

SPACE BETWEEN TIE

mm

460x460

BARS(W*H)

450

MAX.MOULD HEIGHT

mm

160

MIN.MOULD HEIGHT

mm

120

EJECTOR STROKE

mm

50

EJECTOR FORCE

kN

OTHER

MAX.PUMP PRESSURE

MPa

16

15

PUMP MOTOR POWER

kW

9.2

HEATING POWER

kW

MACHINE

m

4.51x1.16x1.87

DIMENSION(L*W*H)

265

OILTANK CUBAGE

L

4.0

MACHINE WEIGHT

t

3. Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service
4. FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

5. CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division, a multi-functional automatic fault detection, alarm system, certificates 99 mold of processing procedures, with remote control interface. System is of high stability and responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.

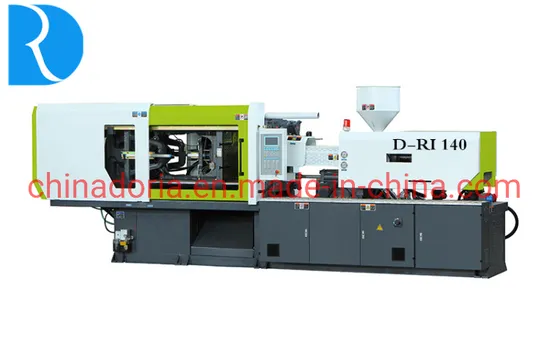

6. Pictures of machine
7. About us:
Commodity moulds manufacture:
Hot Runner Crisper Mould
Hot Runner Tableware Mould for Cutlery
1Cavity Plastic pallet Mould
Hot Runner Spoon Mould
1 Cavity cold Runner Chair Mould
1 Cavity cold Runner plastic stool Mould
1Cavity Hot Runner Trash Can Mould
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
