Stainless Steel Carbon Steel PTFE Threaded Rod Stud Bolt DIN931 PTFE Full Thread

Product Description

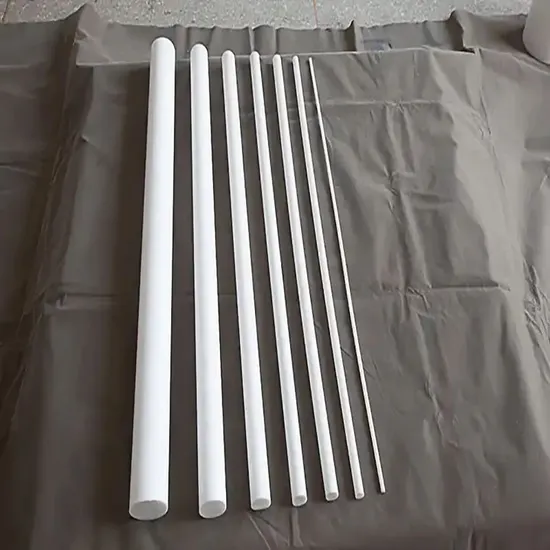

PTFE Rod
Product Parameters

item	value
Place of Origin	China
Material	PTEF
Certificate	MSDS.ROSH
Colour	white black ,blue ,red ,green ,as u order

Detailed Photos
1. Description:Recognized as the first fluorocarbon material in the world and referred to as PTFE or TFE, it is the most chemically resistant plastic known. It has a working temperature range of minus 400° F to 500° F, excellent thermal and electrical insulation properties and a low coefficient of friction.With a non-stick surface, very few materials will adhere to it and those that stick can easily be peeled or rubbed off. PTFE's mechanical properties are lower than other engineering plastics, but that can be improved by adding fillers such as glass fiber, carbon, graphite, molybdenum disulfide and bronze.2. Features:High chemical resistanceHigh temperature resistanceNon-contaminatingMaintenance freeLong durabilitySelf lubricating
Application
Common applications include food processing, electrical parts, insulators, medical components, seals, bearings and high heat situations.Note: Virgin grade rod is made from unreprocessed PTFE resin and costs more then the less expensive "mechanical grade" PTFE rod, which is made from reprocessed PTFE resin. Our factory offers both grades.

Types	Diameter(mm)	Length(mm)
pressed rod	2~4	produced under requirements
extruded rod	5~120	500~3000
die pressed rod	25~300	100~300

Main Technical Data:

Properties	unit	Result
Apparent density	g/cm 3	2.10~2.30
Tensile strength(min)	MPa	14.0
Crack elongation(min)	%	140

Company Profile
Shanghai FluoroChem Industry Co., Ltd. is a tech enterprise specialized in development, production, sale and service of fluoropolymer & Fluoroelastomer. Our R&D team composed of chemical doctors and professors, we have strong technical strength and rich experiences in fluor-ine chemistry field.Our goal is develop the environmental protection type, fluori-ne containing new material; Our Mission is providing customers with best support for product and research; Our service tenet is help the customers get the best products and the benefit by our advanced technology and first-class professional knowledge. No matter where you, no matter how complex your application is, we will try our best to provide you the best service.Our products have been widely applied to wires & cables, pipes, coating for metal, film, seal tape, valve lining, waterproof coating of welding electrode and many other fields, widely adopted by many domestic and foreign manufacturers. Presently, our products are divided into six major categories, more than dozen of models, including PTFE, PVDF, FEP, FKM, PTFE Micropowder, PPA, Fluor-ine-containing fine chemicals etc. We have warmhearted staff and strong ability of research and development, we promise the rapid response to customer's demand, provide high quality products and services, share the success with customers.In order to provide you with high quality products and technical services, and improve the quality of our products constantly, we make the following commitments hereby; Please pay your supervision on our products and services.-->Product qualityAll products can be provided detection report information by the authority organization in strict accordance with national targets.-->Service requirementsTo ensure that customers understand the product structure, performance, and characteristic through various ways before ordering, help customers choose the right products, and make improvement continuously.-->Service goalsMake customers satisfied and rest assured, serve customers whole-heartedly, improve service quality ceaselessly.-->Service commitmentProfessional service with good faith, good quality with low price, we certify to solve problems for customers and improve our product quality.
Our Advantages
Packaging & Shipping
Packing, Storage & TransportationPacked with sealed PVC bag, load in Melting peak temperature proof paper barrel. The net weight is (25±0.1) kg per barrel.Not classified as hazardous for transport. During transportation and storage, avoid heavy shaking, and prevent from heating. It is better to load in refrigerator during transportation.It should stock in clean, cool and dry warehouse, prevent from agglomeration and contamination.
