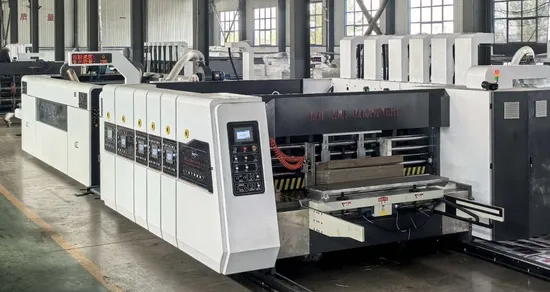

Advanced Carton Printing Slotting Machine with Inline Folder Gluer

Product Description

Flexo Folder Gluer.
Flexo printer slotter, in line folder gluer includes four parts like flexo printer, slotter, die cutter and in line folder gluer. According to actual needs, it has optional printing unit and die cutting unit. To optimize its performance, it employs imported electrical parts and bearings of famous brand from USA, Japan and European. Ceramic anilox rollers made in Taiwan are also applied. Besides, the machine is automatically controlled. Therefore, it is not only light and delicate in design, but comes with firm structure. With printing error ranging from -0.5mm to +0.5mm, our product enjoys sound reputation for being regarded as the high level and high standard machine.

Model	KYS-1224XG
Printing roller dia with printing plate thickness)	¢405mm
Printing roller length( mm)	2400mm
Inner steel wall width	2800mm
Working speed(sheets/min)	80-200sheets/min
Maxi printing size	1200x2400mm
Maxi feeding size	1200×2550mm
Skip feeding size	1550x2550mm
Mini feeding size	360×600mm
Maxi die-cutting size	1100x2450mm
Paperboard available	2-11mm
Printing material	A,B,C,A/B,B/C,and A/B/C
Slotting width and depth	7x90°
Register precision	≤±:0.5mm
Slotting precision	≤±:1.0---1.5mm
Steel anilox roller lines	Color 1-3:220LPI. Color 4:180LPI
Steelwall thickness	50mm
Main motor kw	15kw

Main technical features of each section:
Lead Edge Paper feeding section:
(1) The main control computer and the man-machine interface control system.
(2) The vacuum adsorption mechanical leading edge feeding system ensures accurate and stable feeding.
(3) Side and front baffle computer traverse system, the regulation is stable and precise.
(4) The dust removal brush and vacuum device can be lifted and lowered, and the dust removal is perfect.
Printing Section:
(1) The printing phase is regulated by the main control computer and the each man-machine interface.
(2) Rapid traverse mechanism of paper guide wheel, with scale display, gap self-locking adjustment device.
(3) The bridge guide plate is installed, and the cardboard conveying is more stable
(4) Reel lock on both sides, quick hanging drive, automatic detection and reset
Slotting Section:
(1) The slotting phase is regulated by the main control computer and the man-machine interface
(2) The height adjustment of the slotted box adopts the internal gear mechanism, and the independent drive box is regulated.
(3) Pre-pressing wheel, pressing wheel, slotting cutter head, electric position and setting adjustment.
(4) The precise linear guide rail and the cross shaft linkage displacement system are stable and precise.
(5) The large displacement mechanism of the middle knife has strong production adaptability.
In-lined Folder Gluer
(1) The design and manufacture of automatic carton gluing machine conforms to printing, slotting, folding, gluing and stacking. It has the ability to carry, apply glue, fold, and form several layers automatically. Adopt PLC control, touch screen operation and pre-store and manage orders. Its high-speed production capacity, fast-changing orders and good stability can meet the shorter and shorter lead-time requirements of our carton customers.

Maxi speed	250pcs/min.
Maxi stacking height	350mm
Mini stacking height	80mm
Maxi stacking sheets per pile	30pcs
Mini stacking sheets per pile	10pcs
Maxi paper size	1200x2550mm
Mini paper size	270x650mm
Paper thickness	Single/double wall<=9mm
Maxi size available(L)	Maxi 550mm
Maix size available (B)	Maxi 550mm
Length	14m
Flute combintation	A,B,C,E,A+B,B+C,B+E
