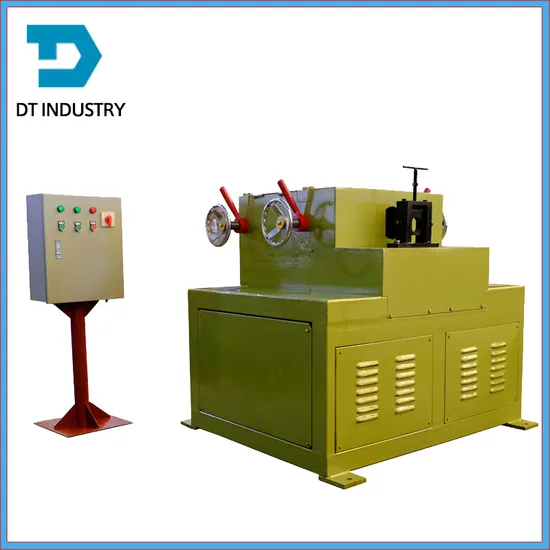

Two Rollers Metal Pipe and Bar Straightening Machine

Product Description

Product Description
The straightening machine with rollers uses a set of pressure wheels that can adjust the distance to bend the metal bar up and down, and eliminate the stress of the metal bar in the process of bending, bending first and then pressing straight, so as to achieve the purpose of straightening the metal bar. In the process of straightening, the smaller the diameter of the straightened bar, the greater the degree of bending when straightening, the thicker the diameter of the straightening bar, the smaller the degree of bending when straightening.
TWO ROLLERS STRAIGHTENING MACHINE
for steel/copper/brass bar and pipe

Numbers of rollers	2pcs (1 convex roller and 1 concave roller)
Diameter of roller	OD160mm and working length 500mm
Specification	6mm-16mm
Speed of straightening	6-8m/min
Main motor power	4kw/4.5kw
Gear box	ZQ250
Center height	750mm
Length of bar	2.5m

WELCOME TO CUSTOMIZE

Product Parameters

Numbers of rollers	2pcs (1 convex roller and 1 concave roller)
Diameter of roller	OD160mm and working length 500mm
Specification	6mm-16mm
Speed of straightening	6-8m/min
Main motor power	4kw/4.5kw
Gear box	ZQ250
Center height	750mm
Length of bar	2.5m

Related products
Horizontal straightening machine for round bar Horizontal and vertical straightener for hex bar steel/ brass Bar suface Peeling machine
Two rollers vertical straightening machine Bar and pipe Polishing machine Bar and pipe shearing machine
Our Advantages
Making a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales. Company Profile
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.
The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
