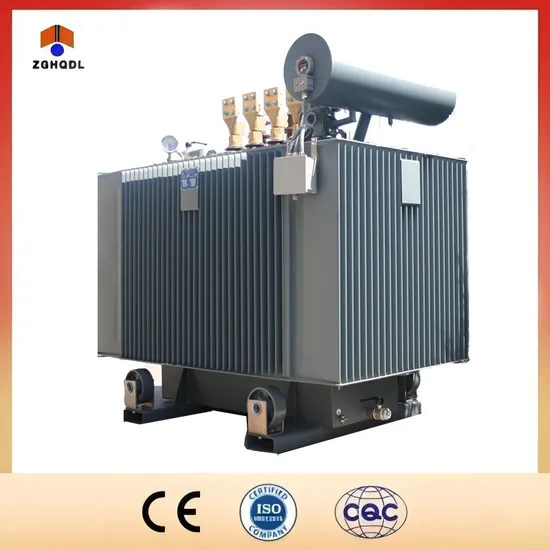

Long-Life Oil-Immersed Step-Down Transformer
| US$688.00-2,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
S13-M
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
Power Frequency
Shape of Core
EI
Rated Capacity
30-2500kVA
Ambient Temperature
-25~40 Centigrade
Customizable
Yes
OEM
Offered
Transport Package
Wooden Case
Specification
Customized
Trademark
ZGHQDL
Origin
Zhejiang, China
HS Code
8504210000
Production Capacity
8000pieces/Year
Product Description
Our S9, S10, S11 series three phase oil-immersed transformers conform to the standards of IEC, GB1094 Power Transformer and GB/T6451-2008 Technical Parameters and Requirements of Three-phase Oil-immersed Power Transformer. With the application of domestic and overseas advanced techniques, our products are made of high-quality raw materials with optimized design, which enables more compact structure and higher capability. The transformer core is made of quality cold-rolled silicon sheet steel and is of a full-miter non-puncture structure. The coil is made of quality oxygen-free copper, featuring good outlook and safe running. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
For clients from different countries and regions, we offer customized production service. We can provide an quotation for you within 24 hours. Any inquiries are welcome!
| Rated Power | Voltage Combination | Connection Symbol | Loss (kW) | Non-load Current | Short Circuit Impedance | Weight (kg) | ||||
| (kVA) | High Voltage (KV) | Tappping Range | Low Voltage (KV) | Label | No-Load | Load | (%) | (%) | Oil Weight | Total Weight |
| 30 | 20 | ±5% or ±2×2.5% | 0.4 | Yyn0 or Dyn11 | 0.1 | 0.63/0.60 | 1.5 | 4.0 | 75 | 295 |
| 50 | 0.13 | 0.91/0.87 | 1.3 | 88 | 395 | |||||
| 63 | 0.15 | 1.09/1.04 | 1.2 | 95 | 420 | |||||
| 80 | 0.18 | 1.31/1.25 | 1.2 | 103 | 480 | |||||
| 100 | 0.2 | 1.58/1.50 | 1.1 | 115 | 540 | |||||
| 125 | 0.24 | 1.89/1.80 | 1.1 | 130 | 645 | |||||
| 160 | 0.28 | 2.31/2.20 | 1 | 145 | 740 | |||||
| 200 | 0.34 | 2.73/2.60 | 1 | 175 | 885 | |||||
| 250 | 0.4 | 3.20/3.05 | 0.9 | 195 | 1010 | |||||
| 315 | 0.48 | 3.83/3.65 | 0.9 | 230 | 1205 | |||||
| 400 | 0.57 | 4.52/4.30 | 0.8 | 255 | 1375 | |||||
| 500 | 0.68 | 5.41/5.15 | 0.8 | 285 | 1620 | |||||
| 630 | 0.81 | 6.2 | 0.6 | 4.5 | 350 | 1960 | ||||
| 800 | 0.98 | 7.5 | 0.6 | 405 | 2310 | |||||
| 1000 | 1.15 | 10.3 | 0.6 | 490 | 1690 | |||||
| 1250 | 1.36 | 12 | 0.4 | 550 | 3315 | |||||
| 1600 | 1.64 | 14.5 | 0.4 | 625 | 3795 | |||||
