for Turning Internal and External Cylindrical Surfaces/Grooves/Chamfering Lathes

for Turning Internal and External Cylindrical Surfaces/Grooves/Chamfering Lathes

US$37,500.00-145,000.00 1 set (MOQ)

Basic Info.

Model NO.
CK5112A
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Max. Processing Diameter
1250mm
Workbench Diameter
1000mm
Max. Height of Work Piece
1000mm
Workbench Load-Bearing
3200kg
Workpiece Table Speed Range
6.3-200 R/Min
Tool Holder Feed Range
0.8-86 mm/Min
Maximum Torque
1750 Nm
Main Motor Power
22 Kw
Specification
2360*2277*3403mm
Trademark
Northern Craftsmen
Origin
Xingtai
HS Code
84589110
Production Capacity
500 Pic/Year

Packaging & Delivery

Package Size
160.00cm * 140.00cm * 340.00cm
Package Gross Weight
1900.000kg

Product Description

Product Description
1: Internal and external cylindrical surfaces, internal and external conical surfaces, grooving
2: Circular arc surfaces and various curved surfaces
3: Rough and fine processing of threads
4: High rotation accuracy, large load-bearing capacity, small thermal deformation
5: AC servo motor, ball screw drive
6: Four-station rotary tool table, convenient tool change
7: The crossbeam vertical tool holder is equipped with a closed guard to increase the safety and ease of operation of the machine tool
8: The worktable spindle adopts precision adjustable warp clearance double-row short cylindrical stick bearing for centering, and the axial direction adopts cross-flow static pressure guide rail.
This CNC equipment has good performance, a wide range of processes, and high production efficiency. It is suitable for mechanical processing in various industries and the machinery manufacturing industry. It can be used for internal and external cylinders, conical surfaces, end planes, grooves, chamfers, etc.

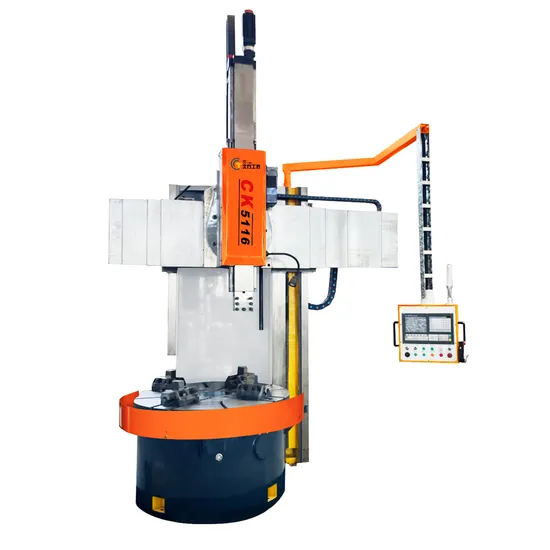

CNC Vertical Lathe Single Column Vertical Lathe

Product Parameters
Project/Specification Unit CK5112A CK5116 CK5126
Max. Processing diameter mm 1250 1600 2600
Workbench diameter mm 1000 1400 2200
Max. Height of work piece mm 1000 1200 1250
Workbench load-bearing Kg 3200 5000 8000
Workbench speed range R/min 6.3-200 5-160 2.2-70
Tool holder feed range Mm/min 0.8-86 0.1-2000 0.8-86
Tool holder cutting force N 2000 24500 24500
Side tool holder Optional
Maximum Torque Nm 1750 24500 31360
Tool holder travel level mm 700 915 1400
Tool holder travel vertical mm 650 800 800
Crossbeam travel mm 650 800 890
Tool holder rotation angle ° 30
Crossbeam lifting speed Mm/min 440
Main motor power Kw 22 30 30
Lifting feed motor power Kw 1.3/1.8
Size mm 2360*2277*3403 2600*2600*3300 3380*3230*3400
Weight Kg 8000 12000 20000
Optional CNC system GSK/KND/SYNTEC/FANUC/SIEMENS/MITSUBISHI

Models are constantly updated and are subject to change without prior notice.
About Us

Certificate display
Visiting customers
Packaging & Shipping
FAQ
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2. Can we pay by L/C or others ?
Yes ,you can make the payment by T/T , l/C etc.
3. What is your payment terms ?
30% down-payment after contract ,and 70% payment before shipment,
Meanwhite it can be discussed according to your situation.
4.When is the delivery time?
The delivery depends on different machines with different configurations.
Please contact us to confirm it is in stock or not.
5. How to handle the warranty period?
During the warranty period, we will provide free replacement parts (EXW)
which are easy damaged.
If the machine problem is not belonging to our machine quality problems,
when the buyer needs us send engineers to give repairing service, we charge
the appropriate cost.
6.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer's installation site, we timely send mechanical and electrical
engineers to install according to the buyer's schedule, the buyer undertakes board and lodging
of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person.
The seller will cooperate with the buyer to deal with visa and installation preparation before
going abroad.
