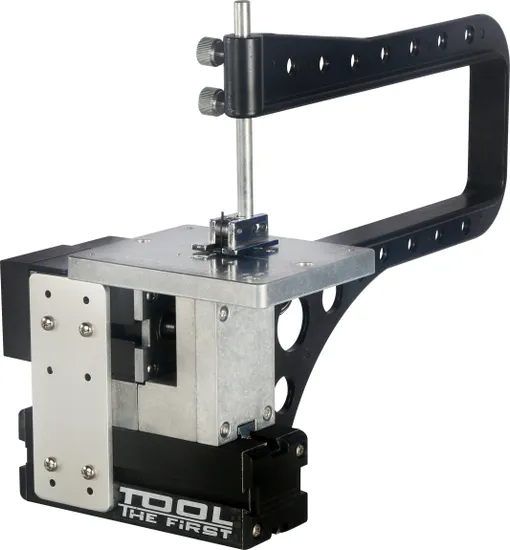

Big Power Mini Metal Bow-Arm Jigsaw Scroll Teaching Steam Saw Vertical Saw Machines
Basic Info.
Model NO.
TZ20001MG
Processing Accessory
Soft Metal
Guide Rail
Lead Screw
Tool Holder
1
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Gross Weight
5.15kg
Net Weight
3.25kg
Motor Speed
12,000rpm/Min
Size for Working Table
90mm*90mm
Motor Power
144W
Maximum Thickness of Material
Solid Wood-4mm, Plywood-7mm, Soft Wood-18mm, Alumi
Transport Package
Cardboard Box
Specification
12VDC/5A/60W
Trademark
Zhouyu
Origin
Guangdong
HS Code
8459210000
Production Capacity
5000
Product Description
| Motor speed: | 12,000rpm/min |
| Input voltage: | 12VDC |
| current: | 5A |
| power: | 60W |
| Size for working table | 90mm*90mm |
| Maximum thickness of material | solid wood-4mm, |
| plywood-7mm, | |
| soft wood-18mm |
Features:
1. Motor case and headstock are jointed.
2. Main parts include headstock, central block, jigsaw base, jig-saw casing, motor blade, gear, jigsaw table, connection piece, drive belt cover etc. All of the parts are made of metal except drive belt cover.
3. With special design, the reciprocating blade is touch-safe in case of finger contact. It just causes slight vibration.
4. Allow straight-line cutting and curve cutting.
Technical parameters:
1.Motor speed :12,000rpm/min
2.Input voltage/current/power:12VDC/5A/60W
3.Size for working table: 90mm*90mm
4. Maximum thickness of material: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.
5. There are over-current protection, over-voltage protection and over-heating protection for the transformer.
6. With bow-shaped arm. The accessories are made of metal, which will increase its durability
7. Motor power: 144W.
