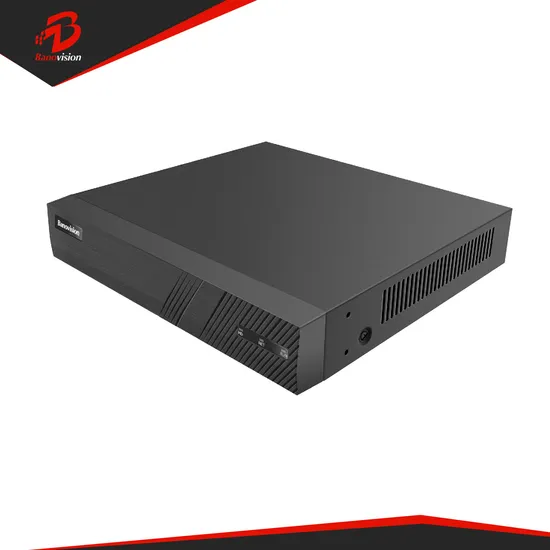

5MP CCTV 8CH Digital Video Recorder Standalone Video Xvr DVR
| US$10.00-50.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BA-1D3108-G3
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
Input: 8CH BNC/ Output: 1CH VGA, 1CH HDMI
Audio Input/Output
Input: 4CH RCA/ Output: 1CH RCA
Remote Control
With Remote Control
Video Input
8CH
Audio Input
1CH
Incoming Bandwidth
40Mbps
Encoding Ability
5MP@12fps4MP@15fps1080p@30fps720p@30fps
Transport Package
Neutral Packing
Specification
Carton
Trademark
Banovision or OEM
Origin
China
HS Code
8521909090
Production Capacity
10000PCS/Month
Product Description
Features:
| * Support H.265/H.264 video formats | ||||
| * Support audio over coaxial cable | ||||
| * Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access | ||||
| * 4/8-channel BNC input | ||||
| * Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 | ||||
| * Long transmission distance over coaxial cable | ||||
| * Support mainstream cameras of ONVIF and RTSP protocols |
| Model | BA-1D3108-G3 | |
| Video/Audio Input | ||
| Analog Video Input | 8-ch, BNC | |
| IP Video Input | 4-ch(only IP up to 8ch), each channel up to 4MP | |
| Supported Analog Camera Types | Support AHD input: | |
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support TVI input: | ||
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVI input: | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:2-ch | |
| SD:8-ch | ||
| Live view display | HDMI/VGA: 1/4/6/8/9/16 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 64Mbps | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows | |
| Firefox (version 52.0 and above) for Windows | ||
| Chrome(version 45 and above) for Windows | ||
| Edge(version 79 and above) for Windows | ||
| Recording Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | |
| Recording Frame Rate | Main stream: | Sub stream: |
| 5MP Lite@12fps | D1@6fps | |
| 4MP Lite@15fps | D1@8fps | |
| 1080P@15fps | D1@12fps | |
| 720P@25fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps | |
| IP: 1 x 4MP@30, 2 x 1080P@30 | ||
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| (The maximum HDD capacity varies with environment temperature) | ||
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 8 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
Rear Panel
