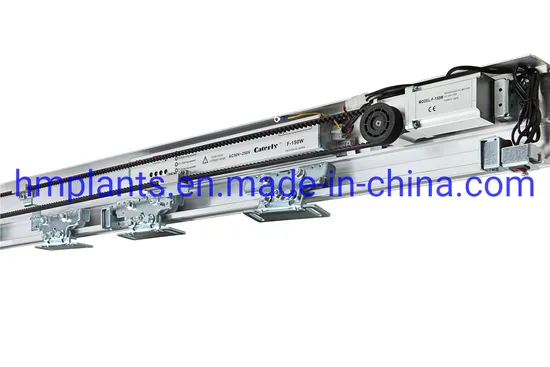

Digital Display Controller Automatic Glass Sliding Door Operator/Kit Ce & RoHS Certification
Basic Info.
Model NO.
F-150W
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Induced
Special Function
Soundproof
Color
Silver
Certification
CE
Position
Commercial
Surface Finishing
Finished
Motor
DC 24V 75W Brushless DC Motor
Power Supply
AC85-250V 50Hz-60Hz
Max Door Weight(Single)
1*150kgs
Opening Time
0-9second(Adjustable)
Max Door Weight(Double)
2*150kgs
Opening Temperature
-20ºC-70ºC
Door Leaf Width
600mm-1300mm
Model Number
F-150W
Delivery Details
Within 2-5 Working Days
Transport Package
Wooden, Carton, Bubble
Specification
Rail beam, cover length, 2.2meter. 2.4meter, 2.
Trademark
CATERLY/FUJI
Origin
Shenzhen China
HS Code
83026000
Production Capacity
5000PCS/Year
Product Description
Digital Display Controller Automatic glass sliding Door operator/kit CE & ROHS certificationSpecifications 1) 3 years warranty
2) IS02008 9001 ,ROHS
3) CE Certificate
Packing details:
1Unit Microcontroller
1Unit 24V Brushless DC Motor
2Pcs Stopper
4Pcs Hanger
7.0 m Belt
2 Pcs Belt Clamp
2 Pcs 24 G Microwave Sensors
1 Package Hardware ( such Screws , Bolts, Nuts and Washers)
1 Installation Instruction
1 Quality Certification
1 Maintenance Cards
senor and other spare parts will be packed in each small box ,and boxes will be packed into one carton.
The aluminum rail will be packed into another carton .
Technical Parameters:
| Door Weight | Max 150KG | ||
| Voltage | AC100V-250V.50-60HZ | ||
| Openning speed | 450-700mm/s(Adjustable) | ||
| Close Speed | 450-700mm/s(Adjustable) | ||
| Slow Down Speed | 30-100mm/s(Adjustable) | ||
| Close Force | 70N | ||
| Power Consumption | <150W | ||
| Manual Force | <120N | ||
| Operate Temperature | -20+-50°C | ||
Detailed Images :
Digit-Controller
Brushless motor wear - resistant, pure copper wire group
Rail beam ,cover length , 2.2meter . 2.4meter , 2.5meter ,3meter,4.2meter (can be custom length )
Hanger wheel (4pcs / set for double opening door )
Belt length 7.0 meter
Pulley
Stopper (2pcs )
Sensor (2pcs)
Company Information SHENZHEN HUI TRADE INDUSTRY CO.,LTD. is a leading manufacturer of automatic sliding door ,automatic swing door ,auto telescopic door,hospital door,break up system ,sensors ,control systems and releative accessories .
