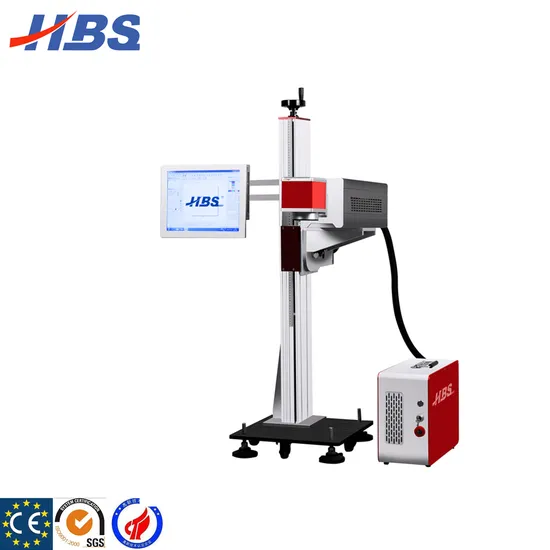

High Quality CO2 Laser Marking Machine for Non Metal Marking
| US$5,500.00-8,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBS-CO2-30A
Laser Visibility
Visible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Source
Raycus
Power
20W, 30W, 50W
Marking Depth
0-0.5mm (According)
Marking Speed
0-7000mm/S
Working Accuracy
0.01
Control Software
Ezcad
Laser Type
CO2 Laser
Certification
CCC, Ce, ISO, SGS
Graphic Format
Ai, BMP, Dxf, Dxp, Las, Plt
Condition
New
Transport Package
Cartons
Specification
1000x880x550mm
Trademark
HBS
Origin
Beijing
HS Code
8456301090
Production Capacity
50000 Pieces/Year
Product Description
CO2 Laser Marking Machine Marking for Non-metals2 years guarantee and life-time after sales service
1. Introduction
HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American CO2 laser and high-speed galvanometer with unique fully sealed cavity construction. The working principle: fill the discharge tube with CO2 gas as a lasing medium, when the high voltage is applied to the electrodes, radiant discharge is generated in the discharge tube, causing the gas molecules to release the laser. After amplification, the laser beam is released for material processing. With the computer controlling the galvanometer, the laser beam is adjusted for automatic marking.
2. Technical Parameters
| Laser Wavelength | 10640nm | Marking Depth | ≤2mm |
| Repetition Frequency | ≤70KHz | Marking Speed | ≤7000mm/s |
| Repetition Accuracy | ±0.001mm | Marking Area | 110mmx110mm |
| Power Consumption | ≤1.2KW | Power Supply | 220V/50Hz/10A |
Optional Lens
| Lens Type | HBS-65 | HBS-110 | HBS-175 |
| Focal Length | 100mm | 170mm | 250mm |
| Marking Area | 65mm*65mm | 110mm*110mm | 175mm*175mm |
| Note: Without special request, HBS will fix our standard lens with Model: HBS-110 | |||
3.Products Features
High-precision marking, high-speed operation, control marking depth freely. No pollution, no consumables. Marking software runs on Windows XP platform, English or Chinese interface, compatible software such as AUTOCAD, CORELDRAW, Photoshop and various formats such as PLT, PCW, DXF, BMP etc. It can also directly access to SHX, TTF fonts library and able to work freely on graphic design.
4.Product Application:
Mainly used in non-metallic industry including tobacco, food and beverage, wine, pharmaceutical packaging, leather, plastics, polymers, wooden products, jade, agate and other non-metallic materials.
5. Marking samples of Laser Marking
6. Our Company
