Reasonable Price 2-8mm Pellet Mini Poultry Animal Feed Production Line

Product Description

Reasonable price 2-12mm Mini poultry animal feed production line
Main introduction for poultry animal feed production machine
1. The poultry animal feed production machine is very popular to be used in the world market, the characteristic is suitable for all levels of customers
2.The poultry animal feed production machine is suitable for home using or small industrial production factory.
3.The poultry animal feed production machine can be configured to diesel engine or electricity motor , it is mobile flexible and simple to operate;
4. The poultry animal feed production machine can make feed pellet for different animals, such as chicken, duck, pig, cow, horse, sheep etc.
Main features of poultry animal feed production line
1) With wide range of the raw materials, agricultural waste such as the sawdust, leaf, stra, wheat bran, rice bran; and grains such as soybean, corn, wheat, cassava, etc.
2) Stable performance, high output, and low consumption. Easy for maintenance, low failure rate, and easy operation.
3) The whole body with strong structure, the flat die and rollers is Wear-resisting, heat-resistant.
4) High molding rate, high density.
5) The diameter is from 2-8mm, can make according to customers' need.
6) The poultry animal feed production machine is made up of the speed changing box, the flat die, the rollers, lubricating system; the flat die can be alloy steel and the stainless steel two choices.
Main Parameters of the poultry animal feed machine

	Model	Capacity (kg/h)	Power(kw)	Gross weight(kg)	Dimension(mm)
1	KL-125	50-90	4KW 220V/380V50HZ	100	750*320*610
2	KL-150	100-150	4KW 220V/380V50Hz	115	750*350*650
3	KL-200	200-300	7.5KW 380V/50Hz	200	1000*430*950
4	KL-230	300-400	11KW 380V/50Hz	260	1140*470*970
5	KL-250	400-600	15KW 380V50HZ	400	1200*520*1070
6	KL-300	600-1000	22KW 380V50HZ	430	1500*640*1080

Raw Materials for poultry animal feed production line
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.

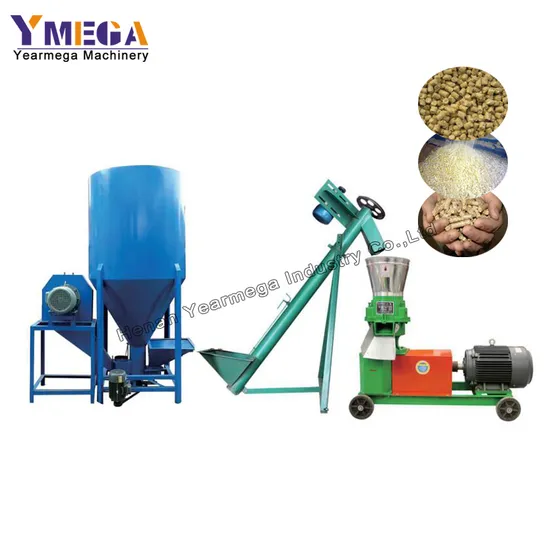

Poultry animal feed production line, flow as following:
Crushing proecss-----Mixing process-----Pelletizing process----Cooling Process-----Packing Process

1	Crushing process	The feed grinder can grind the raw material ingredients to the required size.
2	Mixing process	Mixing is considered to be one of the essential operations in feed pellet processing. We use the mixer to mix different raw materials together evenly.
3	Pelletizing process	Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill.
4	Cooling process	Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for packing.
5	Packing process	Automatic weighing and packing machine can weigh and pack the pellets into bags automatically with high accuracy.

Packing and shipping
1. First the machine would be covered by plastic, and then packed in export wooden case, or nude and loaded in container..
2. we will provide the machine as quickly as possible after the cusomer playing the order. we will track the shipping for customer whenever they need.
Our Services
1. We will give detailed introduction of the poultry animal feed production line according to the client capacity requirement.
2. Share any information about the poultry animal feed production line that the clients need, like detaield pictures, video,etc
3. Design full poultry animal feed production line for client with good price.
4. Provide formulation as reference and help the clients to make suitable feed formulation.
5. Give detailed instruction manual and video to the customers.
Contact information:
If you have interest in this poultry animal feed production line, kindly please send us inquiry.
