Automatic Steel Aluminum Sectional Door Garage Door Manufacturer Large Quantity Discount

Product Description

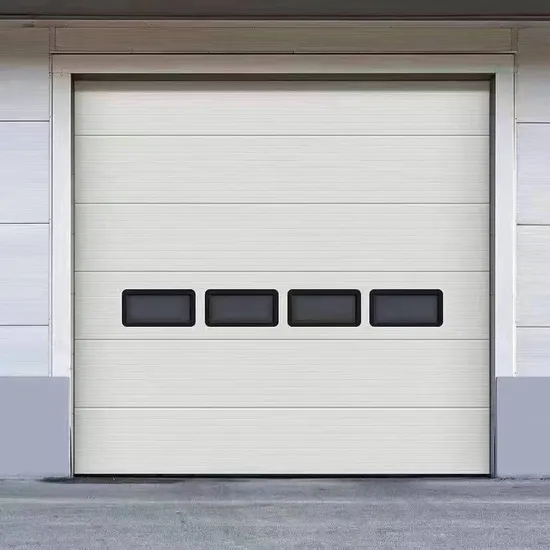

Sectional Door, Used For Factory And Hangar Doors, Easy To Operate, Wind-Resistant And Heat-Insulating

What is a sectional rolling shutter door?
Sectional roller shutter doors and roller shutter garage doors
Segmented steel doors are typically wide panels that can be customized by placing windows in some sections and steel in others. When retracted, these doors roll up and lie flat against the ceiling. The biggest advantage of this type of door is that it can be installed in almost any conditions

Insulated Sectional Doors
Industrial sectional doors, the door panel is made of double-layer sandwich hot-dip galvanized steel plate with surface polyurethane process, the core material is polyurethane insulation and thermal insulation layer, the thickness is 40mm. The end face of the door body is provided with a box-shaped edge banding, and the connecting hinge is mounted on the edge banding, so that the door body is embedded track. The top and bottom sealing strips and lateral sealing strips made of spherical vinyl resin along the width and height of the door are fixed on the bottom and the top to prevent wind, rain and penetration. The door body balance system is composed of torsion spring, reel, steel shaft and locking and fixed flange. The wheel is wrapped with steel, and the steel cable is connected to the steel cable breaking device at the bottom of the door. There- fore, it is also convenient to lift the door body without a motor in a balanced state

Product Details

Part Name	Configuration
Motor transmission system	-Industrial door special motor: consisting of reduction gear, three-phase asynchronous motor, brake system and manual operation mechanism -Drive Mode: axle drive adopted, reducing secondary transmission mechanism, ensuring more stable and reliable operation -Manual chain mechanism: once motor or power failure, open/shut door easily via chain at bottom of motor, or rapidly via clutch mechanism of deceleration
Control system	- Digital signal processing chip, with full isolation circuit standard in industrial level, stable and reliable - Phase sequence protection: based on digital chip, with most advanced software calculation method, phase sequence protection is more stable and reliable - Overcurrent protection - HMl: highlight blue screen LCD adopted, displaying default, running and status code - Whole-course absolute value limit technique: Fourth generation industrial door limit technology, best in precision and stability in current market, achievable in control box - Vector frequency conversion technique: Constant torque output throughout, slow start and stop, free speed adjustment, one of best control method for Mechanical protection and life extension - Reserved ports: Interlock ports, remote control ports, infrared security protection ports, radar induction ports, etc.
Door plate	- Double-layer hot dip galvanizing embossed anticorrosive coated steel plate. Polyurethane density 46kg/m3, thickness 40mm. Sealing strips adopted in each joint of door plate to ensure good sealing effect: Coated steel sheets for front and back door plate, Hiah corrosion resistance and weather resistance: single laver steel sheet thickness 0.4mm, filled with anti-flaming polyurethane material without Freon Parameters Value Theral conductivity 0.38 W/mc Acoustic insulation 24dB(DIN52210) Fire resistance B2(DIN4102)
Rail system	-Supporting and guiding door running, adopting high quality anticorrosive metal guide rail, rerail and rail bracket with thickness 2mm; Multiple ways of lifting according to actual civil structure on site: vertical lift standard hoist, high lintel lift, bottom lintel lift, etc. to optimize your building space
Wind resistance coefficient	-Standard wind load 450N/m2
Torsion spring system	-Balance door weight with force of spring: Torsion spring system: inc. pivot, spring set, torsion spring (galvanized, at least 30,000 life cycles), rope wheel, coupling, etc.
Tail-safe system	- Torsion spring break-proof system: Guide spring easily break when tired after certain usage time, torsion spring break-proof system locks axle at once spring breaks, preventing accidents effectively (standard) - Wire rope anti-break device: installed at bottom of door plate, whatever wire rope sudden break happens when door runs up or down, device self-locks within 5cm to stop door from sliding, even accidents happen (standard) - Safety pressure switch: in process of decline, if presses on any object, door will instantly bounce up (standard) - Safety infrared ray counter switch: installed at bottom of door. If any obstacle under door, door will not close, or trigger in process of decline, it will immediately open to the highest position
Sealing	Sealing strip at bottom, of ethylene-polypropylene adhesive material, inlaid installed, with function of anti-low temperature and ant-fracture, good sealing effect. Sealing assembled around to prevent rain, dust, sound. heat.etc

Operation mode
Obstacle sensing device
Torsion spring
Spring break protection device
Galvanized steel track
Top seal
Bottom sealing strip
Hardware
FAQ
Q1: What is the minimum order quantity for the product?
A: There is no minimum order quantity for our products. We also recommend using wooden crates for protection during shipping.

Q2:Sizes and application scenarios of various products in our factory?
A:We will provide customers with professional suggestions and drawings based on their needs to provide them with the best solutions.

Q3:Can I get industrial door samples for quality checking?
A: There are samples.

Q4:How do I get a price for the product I need?
A: Please give the exact size and quantity of the product you need. We can provide you with a detailed quotation plan according to your requirements.

Q5:What payment terms will you accept?
A: We usually accept T/T.

Q6:We would like to be your agent in our area. How to apply for this?
A: We very much welcome you to become our agent. Please send us your ideas, company or personal information via email. let's work together.

Q7:Can you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide regular size quotation.

Q8:Is it convenient to visit your factory?
A: Yes, our factory is only 2.5 hours drive from Shanghai Airport. Here you are welcome to visit our factory and taste local food.
