HSD400 Small Mini Used semi Automatic Flat V Bottom Food Shopping Paper Bag Making Machine

Product Description

Product Description
HSD400 Small Mini Used semi Automatic Flat V Bottom Food Shopping Paper Bag Making Machine
Videos
Video demonstration only for reference
Video 01: https://youtu.be/Fi23rKyXBsg
Video 02: https://youtu.be/Yf1w9dzk95A
Product Description
Description:

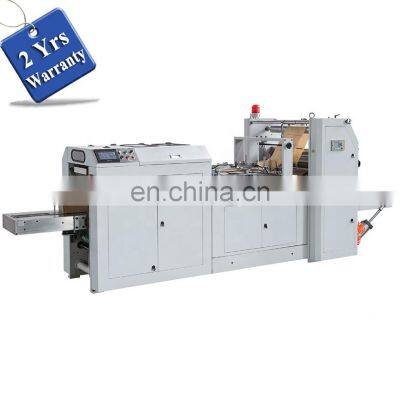

This paper bag making machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Features:
1. Adopt touch screen and PC control system, the work condition can be shown real time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material lifting adopt pneumatic lift structure.
4. Global initiative, leading technology, the “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Accurate color tracking system, color errors automatically shut down.
7. Automatic lubricating oil supply system.
Parameters:

Type	HSD-400	HSD-700
Cutting Length(C)	100-410 mm	170-710 mm
Bag Length(H)	90-400 mm	160-700 mm
Bag Width(L)	70-220 mm	80-350 mm
Gusset Depth(S)	0-60 mm	0-60 mm
Standard Flap(P)	15-18 mm	15-18 mm
Max.Speed	700 pcs/min	600 pcs/min
Paper Thickness	30-80 gsm	30-100 gsm
Paper Roll Width	180-680 mm	220-930 mm
Max.Roll Diameter	1100 mm	1200 mm
Reel Inner Diameter	76 mm	76 mm
Total Power	8 kw	11 kw
Weight of Machine	2600 kg	4200kg
Overall Dimension	4350×1400×1650 mm	5400×1800×1700 mm

Detailed Images
Man-machine Interface Touch Screen
Automatic Counting System
Color Mark Tracking System
Paper Tube Forming System
Servo Motor Driven Point Tooth Pre-Cut System
Pneumatic Paper Reel Loader
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
