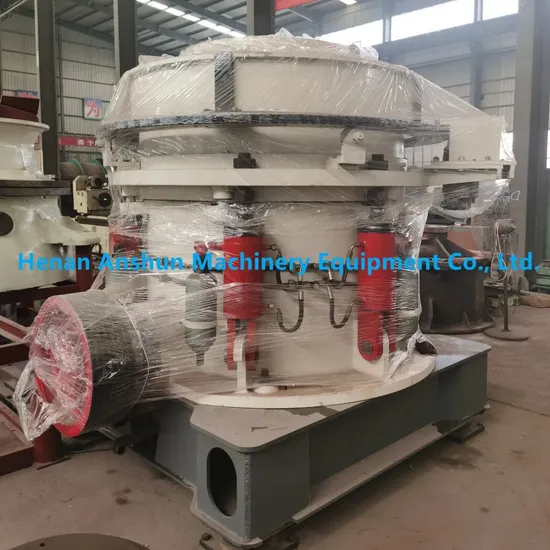

Factory Supply High Productivity Hpt Multi-Cylinder Hydraulic Cone Crusher

Product Description

Product Description
Multi-cylinder cone crusher is a typical crushing equipment for medium and fine crushing hard materials, which is mainly used in the two-stage crushing and three-stage crushing link in metal mining and construction sand processing. Multi-cylinder hydraulic cone crusher because hydraulic devices realize its safety, adjustment, and locking, so it also has the advantages of convenient adjustment of ore discharge, small overload coefficient through non-crushing objects, easy to take out the non-crushing objects blocked in the crushing chamber.
Product Advantages
1. Fixed spindle: The equipment has a strong carrying capacity, a more compact structure, a small size, and high efficiency.
2. It was designed by adopting the principle of intergranular lamination. Utilizing the mutual extrusion of materials, the crushing efficiency and the proportion of fine materials are significantly improved, the needle and flake materials are greatly reduced, and the steel consumption of wearing parts is reduced.
3. Advanced bearing design, using tin bronze bushing sliding bearing design. Compared with rolling bearings, the equipment can maintain ultra-high load capacity in high-dust and high-impact environments and has low production costs.
4. A temperature sensor is installed at the oil return position of the horizontal axis to accurately detect the oil temperature and ensure stable operation of the equipment; the transmission system uses spiral bevel gears to ensure reliable and stable transmission.
5. The liner fixing method is improved While the cone wall is thickened. This eliminates the need for glue filling, making replacement very convenient and fast and reducing maintenance costs.
6. Integrated hydraulic lubrication and unique thin oil lubrication system design greatly extend the service life of the equipment. High-performance, non-contact labyrinth seals are more conducive to ensuring the cleanliness of lubricating oil.
7. The oil circuit of the safety cylinder adopts large-diameter oil pipes and large-capacity accumulators, which have better buffering performance, faster response, and safer equipment.
8. The standard floating installation base makes the installation simple, labour-saving and time-saving, with reduced foundation requirements and low user investment.
The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher. It obviously can prolong the life of your crusher. The final machining is carried by CNC machine to ensure each dimension tolerance, which helps to make your assembly easy and fast, to improve the efficiency of your production and maintenance.

Model	Cavity	Open Side Feeding Size (mm)	Closed Side Feeding Size (mm)	Minimum Discharge Port Size (mm)	Capacity (t/h)	Max Installed Power (kw)
HPT100	C1 (Extra coarse)	175	140	19	450-100	90
	C2 (Coarse)	125	105	13
	M (Medium)	100	70	10
	F1 (Fine)	71	50	9
	F2 (Extra fine)	33	20	6
HPT200	C2 (Coarse)	235	190	19	65-250	160
	M (Medium)	171	120	16
	F1 (Fine)	150	95	13
	F2 (Extra fine)	116	70	8
HPT300	C1 (Extra coarse)	265	230	25	85-440	220
	C2 (Coarse)	240	210	20
	M (Medium)	190	150	15
	F1 (Fine)	145	105	11
	F2 (Extra fine)	120	80	8
HPT400	C1 (Extra coarse)	360	290	30	135-625	315
	C2 (Coarse)	310	250	25
	M (Medium)	260	196	20
	F1 (Fine)	182	110	13
	F2 (Extra fine)	135	90	10
HPT500	C1 (Extra coarse)	370	330	38	200-790	400
	C2 (Coarse)	320	290	28
	M (Medium)	245	210	22
	F1 (Fine)	180	130	13
	F2 (Extra fine)	150	95	10
HPT800	C1 (Extra coarse)	450	352	38	265-1200	630
	C2 (Coarse)	373	298	32
	M (Medium)	340	275	25
	F1 (Fine)	280	230	16
	F2 (Extra fins)	235	150	10

Working Principle
The triangular belt drives the motor, the drive shaft and the bevel gear pair to rotate the eccentric sleeve, and the moving cone rotates under the action of the eccentric sleeve. The moving cone and the fixed cone are sometimes close and sometimes deviated, and the material in the crushing chamber is squeezed and crushed at 360°, and the broken material is discharged from the lower part.
Grain Size Distribution Curve
HPT series cone crusher shows excellent crushing capacity in secondary crushing and fine crushing in metal ore, construction sand, and stone processing. With its strong crushing ability and large capacity, it is commonly used to crush medium and hard rock.Cone Stone Crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc. Different final output sizes could meet your different needs.
