2024 Hot Sale Concrete Pump on Tracks for Sale Price Cost

Product Description

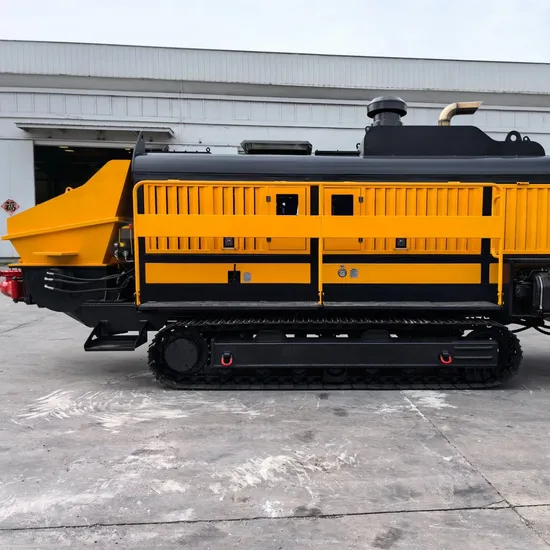

This is our 90m3/h crawler concrete pump with stage V diesel engine. If you also need it, welcome to contact us for details and quotations.

Product Description
1. Brief introduction of our concrete pump
Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel construction. Our concrete pump can deliver concrete to about 200 meters in height and 500 meter in length.

We use world famous brand for the main parts of our concrete pump which can ensure the performance of the machine. Such as: Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal etc.

All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites. If neede, our concrete pump can also be equipped with air brake, so we can use trailer or car to tow it on road.

Currently, we have 10m3/h, 20m3/h, 30m3/h, 40m3/h, 50m3/h, 60m3/h, 80m3/h and 90m3/h electricity powered or diesel-powered concrete pump for you to choose.
Product Parameters
1. Pictures and specification our concrete pump
1). Diese concrete pump

Model	HBTS10R	HBTS20R	HBTS40R	HBTS60R	HBTS80R	HBTS90R
Max. Delivery Capacity (L/H) (m3/h)	10	20	40/26	61/37	84/45	95/55
Main Hydraulic Pump Brand	Zhenghai	Zhenghai	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki
Max. Pumping Pressure (L/H) (Mpa)	12	6	7.6/12	7.6/12	7.6/13	7.6/16
Delivery Pipe Diameter (mm)	80	80	125	125	125	125
Diesel Engine Brand	Weichai	Weichai	Weichai	Weichai	Weichai	Weichai
Diesel Engine Power (kw)	36	36	82	82	129	176
Max. Delivery Distance (V/H) (m)	25/80	100/300	160/500	160/500	190/800	360/1200
Max. Aggregate Diameter (mm)	20	25	40	40	50	50
Overall Size (mm)	1800*1000*1400	4200*1500*1900	5000*1850* 1700	4820*1750* 1770	6000*2160* 2600	6000*2200* 2250
Total Weight (kg)	650	3000	4500	4500	6500	6500

2). Electric concrete pump

Model	HBTS10	HBTS20	HBTS40	HBTS60	HBTS80	HBTS90
Max. Delivery Capacity (L/H) (m3/h)	10	20	40/23	62/27	82/48	101/61
Main Hydraulic Pump Brand	Zhenghai	Zhenghai	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki
Max. Pumping Pressure (L/H) (Mpa)	12	6	7.6/12	7.6/12	7.6/13	7.6/16
Delivery Pipe Diameter (mm)	80 or 100	80 or 100	125	125	125	125
Motor Brand	Rongcheng	Rongcheng	Rongcheng	Rongcheng	Rongcheng	Rongcheng
Motor Power (kw)	22	37	45	75	90	110
Max. Delivery Distance (V/H) (m)	25/80	100/300	160/500	160/500	190/800	360/1200
Max. Aggregate Diameter (mm)	20	25	40	40	50	50
Overall Size (mm)	1800*1000*1400	3500*1250*1400	4500*1750* 1600	5200*2000* 2260	5900*2000* 2260	6000*2100* 2250
Total Weight (kg)	600	1800	3200	4500	6300	6300

2. Special concrete pump
1)concrete pump with crawler
2)concrete pump with trailer
3)truck mounted concrete pump
4) Concrete pump with air compressor and water tank
