small hole wipe wall mesh The special type

Product Description

Product Description
Plaster wire mesh
for security wall
See more>>

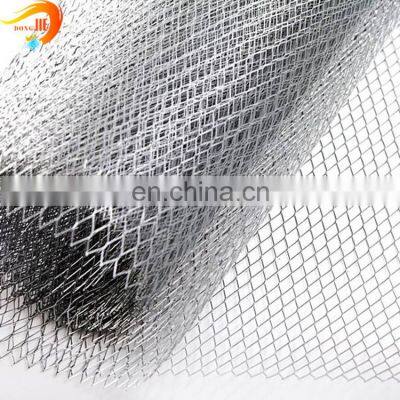

Plaster wire mesh Plaster wire mesh is used for security wall, also named expanded metal mesh, Expanded metal sheet is made by first creating multiple slits in the sheet, and then stretching the sheet. The stretching creates a unique diamond pattern opening with one of the strands protruding at a slight angle. These raised strands can be flattened later in the process if desired. As you can see this process creates no waste (thus keeping down production costs) and it can add structural strength to the product.

Specifications of expanded metal mesh for plastering
Tickness(mm)	SWD(mm)	LWD(mm)	Wire stems width(mm)	Width(m)	Length(m)	Weight(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5
4	50	100	4	2	2	11.15
4	60	120	4	2	7.5	4
4	80	180	4	2	10	3
4	100	200	4	2	12	2.5
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
5	75	150	5	2	10	3
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

Hole details Expanded mesh can be supplied in a variety of finishes, thickness, raised or flattened. Flattened is smoother and does not indent soft materials if this is a consideration but is not as strong as the more robust raised mesh. Powder coating in your choice of colour will enhance its aesthetic appearance and add to its corrosion resistance as would plastic coating.

Features Because of its jointless continuity it is a highly efficient conductor of electricity, magnetic flux and heat. It has excellent corrosion resistance when suitably coated, and the uncut knuckles support weight and withstand stress better than jointed welds or woven materials
Premise free flow of light, heat, sound and air.Effective alternative cost.It is easily fabricated, finished, installed and formed.

Application Our expanded metal mesh is widely used in buildings and construction for
plastering maintenance of equipments, making of arts and crafts . Also serve as reinforcing bar in construction,railway and bridges.
Others
Filters ReinforcinSecurity Guarding Exhibition StandsPacking Security CageGrilles CompoundsTreeguards WindowguardsStairways Fire GuardsEnclosures Litter Bins

Packing&shipping

Packaging	Plastic film then pallet or according to the customer's requirments.
Shipping	15days for 1X20ft container,20days for 1X40HQ container.
