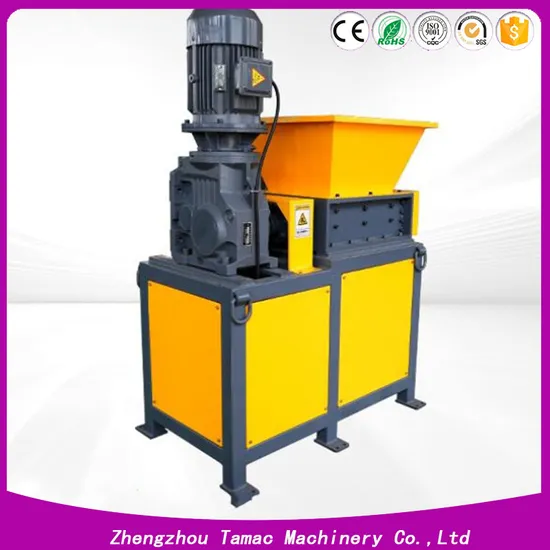

Double Shaft Waste Sludge Shredder Wood Hard Disk Recycling Metal Plastic Bottle Scrap Metal Shredder

Product Description

Double Shaft Waste Sludge Shredder Wood Hard Disk Recycling Metal Plastic Bottle Scrap Metal Shredder Introduction:
Each double shaft Shredders consists of heavy-duty materials chosen to handle even the most demanding shredding jobs. our double shaft industrial shredders accumulate low wear, generate low noise, low dust, and low vibration, while being super high in torque! Features:
1. The movable knife has high crushing power, and the knife is made of alloy steel, which is strong and has a long service life.
2. The frame plate is thick, can resist high torque, and is very strong.
3. Microcomputer (PC) automatic control is adopted, with
start, stop, reverse and overload automatic reverse control functions.
4. The equipment has the characteristics of low speed, high
torque, low noise, and dust can meet environmental protection standards.
5. Easy to adjust, low maintenance cost, economical and
durable. The thickness of the tool and the number of claws can be changed according to different materials.
Technical parameters:

MODEL	YSD180	YSD300	YSD400	YSD500	YSD300-2S	YSD400-2S	YSD500-2S
Processing capacity (kg/hour)	100-250	300-500	800-1000	1200-2000	450-750	1200-1500	1800-3000
Motor	1.5KW-4,1Set	3KW-4,1Set	4KW-4,1Set	7.5KW-4,1Set	3KW-4,2Set	4KW-4,2Set	7.5KW-4,2Set
Reducer	K47,1Set	JKA77,1Set	JKA87,1Set	JKA97,1Set	JKA77,1Set	JKA87,1Set	JKA97,1Set
Electric control cabinet	PLC Protection System
Input speed	25rpm	15rpm	17rpm	15rpm	16rpm	17rpm	15rpm
Input torque	400Nm	1696Nm	2176Nm	4574Nm	3107Nm	3952Nm	8255Nm
Input shaft diameter	φ35	φ60	φ60	φ70	φ60	φ60	φ70
Blade specifications	φ90*8	φ180*12	φ180*15	φ200*20	φ180*12	φ180*15	φ200*20
Number of blades	21pcs	25pcs	26pcs	25pcs	25pcs	26pcs	25pcs
Feed mouth size(mm)	280*200*180	500*500*300	500*600*300	600*700*400	500*500*300	500*600*300	600*700*400
Machine dimensions (L*W*H)(mm)	722*590*350	850*500*1300	1000*500*1450	1200*600*1550	1200*500*1300	1400*500*1450	1600*600*1550

Drawing:
Application scope:
1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.
2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.
6.Waste household appliances: TV, washing machine, refrigerator shell etc.
7. Pipes: large pipes, pipe fittings, PE pipes etc.
8.Scrap tires: car tires, truck tires etc.
9.All kinds of Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste etc.Main components:Delivery:
Welcome to contact us freely for more informations,such as pictures,test videos of our double shaft shredder.
