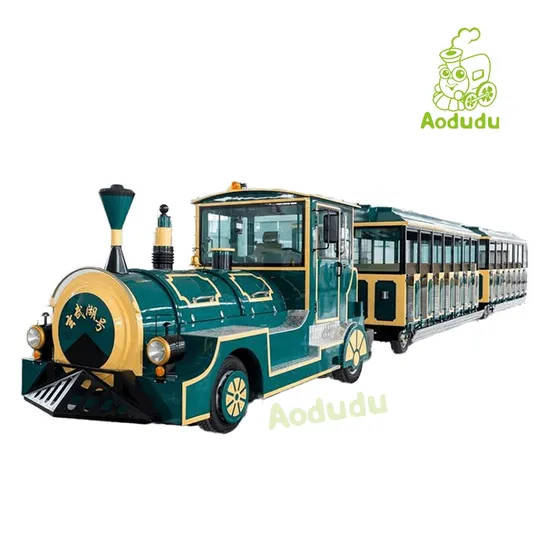

Attraction Tourist 72 Seat Customizable Trackless Automatic Door Electric Sightseeing Train (ALGD-72-S)

Attraction Tourist 72 Seat Customizable Trackless Automatic Door Electric Sightseeing Train (ALGD-72-S)

US$20,000.00-100,000.00 1 set (MOQ)

Basic Info.

Model NO.
ALGD-72-S
Material
Metal Material
Usage
Outdoor Rides
Suitable for
Amusement Park
Max Capacity
>500kg
Allowable Passenger
>10
Customized
Customized
Condition
New
Certification
CE
Locomotive Size
4603*1980*2500mm
Cabin Size
5400*2300*2520mm
Rated Passenger Capacity
35 + 35 + 2
Maximum Speed
20km/H
Minimum Turning Radius
Acuity 8.5 M
Maximum Braking Distance
Less Than or Equal to 5m
Maximum Driving Range
60km
Minimum Ground Clearance
Less Than or Equal to 150mm
Wheelbase
2600mm
Maximum Driving Grade (No Load)
4% or Less
Design Grade (No Load)
7% or Less
Wheel Track
1400mm
Trademark
Aodudu
Origin
China
HS Code
9508900000
Production Capacity
200

Packaging & Delivery

Package Size
4603.00cm * 1830.00cm * 2413.00cm
Package Gross Weight
2440.000kg

Product Description

Company Profile
We are a large sightseeing car manufacturer specializing in the production of trackless trains, electric patrol cars, golf carts, commuter buses, tour buses, cartoon cars, tour buses, amusement cars and various customized models.Widely used in scenic spots, amusement parks, zoos, theme parks, real estate villas, stations, docks, large hospitals, universities, urban pedestrian streets, sports venues, large industrial and mining enterprises, golf courses and other places, can be used for passenger sightseeing and cargo transport.
We have rich experience in foreign sightseeing car sales, such as the United States, Brazil, Bahrain, Cuba, Russia, South Korea, Japan, Cambodia and so on. Product Description
Lithium battery Lithium iron phosphate cell, 460AH, 73.6V Traction motor 72V/ 12KW AC motor
charger Automatic charger MP6 plays car device Special for buses (can play music, video) SD/TF card /USB compatible; Digital radio, fully electronically controlled digital tuning, FM radio, 18 preset stations automatic scanning storage function; Large pure blue LCD display, gold plated RCA terminal audio output, USB/SD dustproof function, using car gauge level flexible button, 4×50W output power.
controller 72V500A electronic commutation (fully intelligent controller) Monitoring system Installation of monitoring system (500G HD hard disk probe for bus for up to 15 days in each carriage)
Display screen Hd screens are installed in each carriage Guide the service to the station The vehicle is equipped with a voice station announcer
If you have any requirements for appearance, lights, logos, functions, etc., we can tailor it for you. As a professional manufacturer, we will provide you with the best quality and service.Optional configuration: Assistive ramp for visitors with strollers and wheelchairs. Detailed Photos
Larger riding space, broader vision, more convenient functions, bring you a remarkable different scenic traffic ride experience. With a straight frame chassis, all functions are modular and driving bumps are minimized.
Our Advantages
Our trains are made of metal materials and treated by electrophoresis. This technology is unique in China. With this material, our trains can run for more than 15 years.
Sheet metal stamping, material hardness is high, convenient for later maintenance and modification. The integration of the exterior and interior of the vehicle, integrated processing, rigidity enhancement, light weight improvement.
Selection of large tonnage traction device, suitable for the front of the traction of multiple carriages, strong load;
Easy to operate, automatic locking,
When the carriage is likely to roll over, the traction can reverse to the chassis a force, the two forces offset each other, so as to balance the carriage and enhance the stability and safety of the carriage.The multi-function screen integrated control technology is used to provide interactive entrance for intelligent and network, and achieve 20% function expansion.
