Metal Geared Head Drilling and Milling Machine (ZX7045)
| US$1,200.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7045
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
45mm
Taper
MT3
Motor
1.1kw
Spindle Travel
130mm
Table Size
800X240mm
Transport Package
Plywood Case
Specification
350KGS
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
20 PCS/Month
Product Description
VERTCIAL DRILLING AND MILLING MACHINE FEATURE:

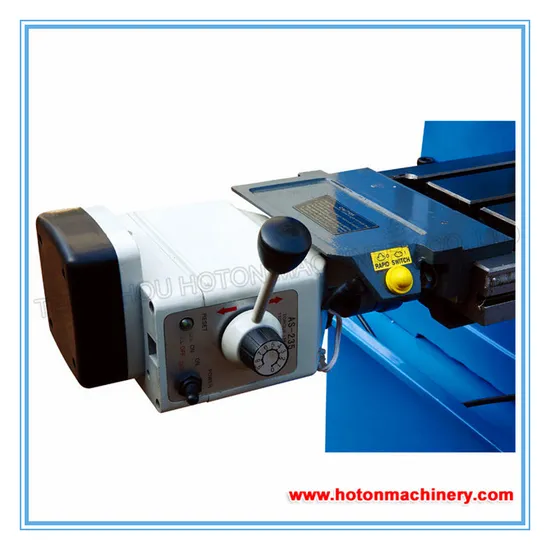

ZX7045 not the same as ZX45, except that ZX7045 is equipped with Worktable power feed(longitudinal), Lifting motor with Big Electrical box, 2step motor with 12 steps speed iron casting foot stand and oil pan which can improve the machining accuracy and producing efficiency.
Milling drilling, tapping, boring, reaming;
Head swivels 360° ;
Micro feed precision;
Super high column, Wide and big table, Gear drive, lower noise.;
Heavy-duty tapered roller bearing spindle, Positive spindle lock, Adjustable gibs on table
SPECFICATIONS:
| MODEL | ZX7045 |
| Max.drilling capacity(iron/steel) | 31.5/45mm |
| Max.mill capacity(face/end) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable size | 800×240mm |
| Worktable travelX/Y | 570/230mm |
| Head tilt left right | 90° |
| Spindle travel | 130mm |
| Spindle nose to worktable | 470mm |
| Spindle center to column surface | 285mm |
| Spindle speeds range(2 steps) | 12steps:75-3200r/min |
| motor | 0.85/1.1kw |
| N.W/G.W | 300/350KG |
| Packing size(L×W×H) | 1140×960×2240mm |
| 20'Container | 12 sets |
