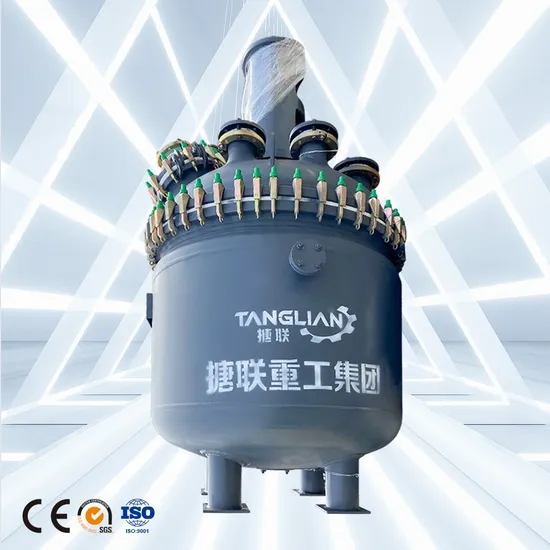

K/Ae Type 3000L Carbon Steel Glass Lined Jacketed Reactor

Product Description

Main Specification of Part of Models (50L-6300L)
For more models , please contact our sales manager

Specification Model		K-50	K-100	K-200	K-300	K-500	K-1000	K-1500	K-2000	K-3000	K-5000	K-6300
Nominal Capacity (L)		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Capacity (L)		71	128	247	369	588	1250	1720	2160	3380	5224	6735
Heat Exchange Area(m2)		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13	16.4
Dimension mm	D1	500	600	700	800	900	1200	1300	1300	1600	1750	1750
	D2	600	700	800	900	1000	1300	1450	1450	1750	1900	1900
	D3	706	816	918	1028	1130	1468	1622	1622	1964	2152	2152
	Hl	265	300	345	380	405	480	505	505	580	617	617
	H2	400	500	700	800	1000	1200	1400	1745	1740	2050	2997
	H3	300	320	350	350	400	500	500	500	600	670	700
	H4	945	945	953	1154	1154	1276	1276	1276	1326	1326	1475
	H	1705	1845	2110	2440	2700	3000	3310	3650	3785	4800	5580

Shandong Tanglian Chemical Equipment Co.,Ltd.,founded in 1998,is one of the longest -established Chemical Reactors factories in China ,located at Zibo City , Shandong Province , where China's first glass lined reactor / equipment was born .
Zibo City , with the perfect best natural environment for Glass Lining Products production .The quality of the glass lined equipment produced here , is significantly better than those in other regions.
Now we are acting as Shandong Tanglian Heavy Industrial Group Co., Ltd. with 7 branches companies for different products and services .
Main subsidiaries and services of Tanglian Group
Shandong Tanglian Engineering Design Co., Ltd - For engineering design services
Shandong Tanglian Chemical Equipment Co., Ltd - For glass lined chemical equipment
Binzhou Tanglian Chemical Equipment Co., Ltd - For glass lined / PTFE / ETFE / PFA / other lining equipment
Shandong Tanglian Metal Products Co., Ltd. - For stainless steel (GMP) ,and other special metal chemical equipment
Shandong Tanglian International Trade Co., Ltd - For international trade business
Our main products:
Chemical Reactor , Storage / Receiving / Buffer Tank , Column / Tower Section , Pipeline ,Heat Exchanger / Condenser , Evaporator
MOC ( material of construction ) of equipment :
Glass Lining , PTFE / ETFE / PFA Lining , Stainless Steel , Carbon Steel , Hastelloy , DP Steel
We also offer engineering / production line design and construction services After more than 25 years development , now TANGLIAN Group are supplying the equipment and services to more than 20 countries and regions , and working with many top companies & angencies in different countris and working filed .
Some domestic parters for example : Chinese Academy of Sciences , Harbin Institute of Technology , Gan & Lee Pharmaceuticals , Qilu Pharmaceuticals etc .
For overseas projects , please contact our sales manager for detail list .
TANGLIAN GROUP is always trying our best to meet clients' differentiated customization needs . To achieve this goal , we have ISO , SGS , CE ,EU Welder Approval Test Certificate etc ., for our company , products and workers .
If you need any certificates or services in your specific market , please feel free to tell us and we will manage to meet your needs .
FAQ
Q1: Are you a factory or a trading company?
A1: Tanglian Heavy Industry Group Co., Ltd. is an integrated industry and trade enterprise with 7 subsidiaries under its
jurisdiction. It has the business capabilities of design, manufacturing, trade integration, and independent import and export.
Q2: Will there be any guarantee if I buy from you?
A2: We promise to provide a one-year warranty (from the date of delivery) for all products we currently sell.
Q3: Do you provide installation guidance or other after-sales service?
A3: Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we will
arrange for our engineers to help you with voice or video contact.
Q4: What are the payment methods and terms you accept?
A4: The payment methods we accept include: T/T, L/C, D/P; after signing the contract, the customer needs to pay 30% of the deposit first, and the remaining 70% of the payment is completed in the delivery money.
Q5: What is your delivery time?
A5: We can arrange FOB, CIF shipping methods. Usually, the delivery time for one device is 45 to 50 days, depending on the shipping method.
Q6: How do you pack and ship the equipment?
A6: We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.
