Glass-Lined Horizontal Storage Tank 8000L/
| US$1,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
8000L
Condition
New
Customized
Customized
Certification
ISO9001
Tank Marerial
Metal Tank
Type
Tank Container
Storage Objects
Solid, Liquid
Glass Thickness
0.8 mm to 2.0 mm
Storage Medium
Moncombustible/Nontoxic
Jacketed
with Cooling/Heating Jacket
Transport Package
Expert Export Transportantion
Specification
8000L
Trademark
Huateng Datang
Origin
China Beijing
HS Code
8419899090
Production Capacity
2000set/Year
Product Description
Product specification: 3000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Application: Widely used in chemical, petroleum, medicine, pesticide, food and other industries. Horizontal glass lined storage tank (storage tank) specifications: 3000L, 4000L, 5000L, 6300L, 8000L, 10000L, 12500L, 16000L, 20000L, 25000L, 30000L, 40000L, 50000L, 63000L, 80000L.
| Nominal volume VN/L | Actua volume V/L | Nominal diameter D | Cylinder length L | Nominal diameter of pipe orifice DN | Liquid level gauge Nominal length quantity | ||||||
| Spare port a | Spare port b1b2 | Spare port C1C2 | Outlet d | Liquid level gauge h1-4 | Manhole m1 | Manhole m2 | |||||
| 3000 | 3330 | 1450 | 1454 | 80 | 100 | 65 | 80 | 65 | φ500 | 1000×1 | |
| 4000 | 4453 | 1450 | 2135 | 1000×1 | |||||||
| 5000 | 5533 | 1600 | 2140nlet | 1200×1 | |||||||
| 6300 | 6847 | 1750 | 2185 | 1400×1 | |||||||
| 8000 | 8909 | 1900 | 2430 | 1500×1 | |||||||
| 10000 | 11074 | 2000 | 2760 | 150 | 150 | 1600×1 | |||||
| 12500 | 13555 | 2000 | 3550 | 1600×1 | |||||||
| 16000 | 17225 | 2200 | 3700 | 150 | φ600 | 1800×1 | |||||
| 20000 | 21705 | 2400 | 3900 | 2000×1 | |||||||
| 25000 | 27595 | 2800 | 3450 | 2100×1 | |||||||
| 30000 | 32505 | 3000 | 3500 | 2200×1 | |||||||
| 40000 | 43947 | 3200 | 4300 | 200 | 200 | φ600 | 2500×1 | ||||
| 50000 | 53848 | 3400 | 4700 | 2600×1 | |||||||
| 63000 | 66643 | 3600 | 5250 | 2600×2 | |||||||
| 80000 | 84645 | 3800 | 6100 | 2700×2 | |||||||

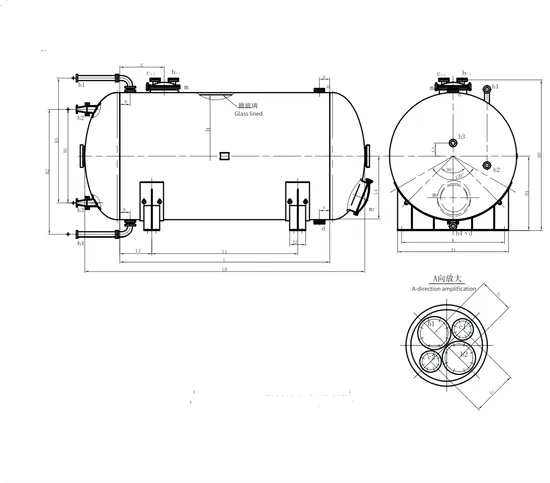

| Nominal volume VN/L | Size | |||||||||||||||||
| L0 | L1 | L2 | L3 | L4 | H0 | H1 | H2 | H3 | H4 | A1 | A2 | K | B | E | F | G1 | ||
| 3000 | 2260 | 740 | 357 | 2112 | 1000 | 1089 | 1300 | 250 | 1080 | 600 | 115 | 290 | 320 | |||||
| 4000 | 2940 | 1420 | 357 | 2118 | 1000 | 1095 | 1300 | 250 | 1080 | 120 | ||||||||
| 5000 | 3020 | 1400 | 370 | 2270 | 1200 | 1170 | 1430 | 250 | 1180 | 120 | ||||||||
| 6300 | 3140 | 1390 | 397 | 2422 | 1400 | 1250 | 1560 | 250 | 1300 | 130 | ||||||||
| 8000 | 3460 | 1590 | 420 | 2575 | 1500 | 1325 | 1690 | 250 | 1420 | 130 | ||||||||
| 10000 | 3860 | 1860 | 450 | 2680 | 1600 | 1376 | 1780 | 250 | 1490 | 150 | ||||||||
| 12500 | 4650 | 2610 | 470 | 2680 | 1600 | 1376 | 1780 | 250 | 1490 | |||||||||
| 16000 | 4900 | 2700 | 500 | 2910 | 1800 | 1475 | 1950 | 300 | 1680 | 300 | 390 | |||||||
| 20000 | 5200 | 2800 | 550 | 3110 | 2000 | 1580 | 2130 | 300 | 1890 | |||||||||
| 25000 | 4950 | 2250 | 600 | 3523 | 2100 | 1780 | 2470 | 400 | 2240 | 700 | ||||||||
| 30000 | 5100 | 2240 | 630 | 3275 | 2200 | 1882 | 2650 | 400 | 2430 | |||||||||
| 40000 | 6000 | 2800 | 750 | 1120 | 3932 | 2500 | 1985 | 2820 | 400 | 2590 | 750 | 200 | ||||||
| 50000 | 6500 | 3100 | 800 | 1190 | 4135 | 2600 | 2085 | 3000 | 400 | 2740 | ||||||||
| 63000 | 7150 | 3550 | 850 | 565 | 1260 | 4335 | 1128 | 2600 | 2600 | 2188 | 3200 | 400 | 2920 | 150 | ||||
| 80000 | 8100 | 4210 | 945 | 565 | 1330 | 4548 | 1128 | 2700 | 2700 | 2290 | 3390 | 400 | 3110 | 150 | ||||
