High Gain 8 dBi 840-940MHz Omni Fiberglass Antenna Waterproof with Spring Anti Drone Jammer System

High Gain 8 dBi 840-940MHz Omni Fiberglass Antenna Waterproof with Spring Anti Drone Jammer System

Negotiable 1 Piece (MOQ)

Basic Info.

Gain
5dBi
Material
Fiberglass
Nature of Operation
RF Emit Antenna
Operating Wavelength
Microwave
Polarization
Vertical Polarization
Sturcture Form
Surface Antenna
Usage Occasion
Handheld Antenna
VSWR
<1.5
Color
Black
Jamming Radius
1-2km
Weight
0.45kg
MOQ
1PCS
Rated Wind Velocity
60m/S
Lightning Protection
DC Ground
Installation Method
Machine Installation
Transport Package
Carton
Specification
69*32*710mm
Trademark
OEM
Origin
China
Production Capacity
1000000PCS/Year

Product Description

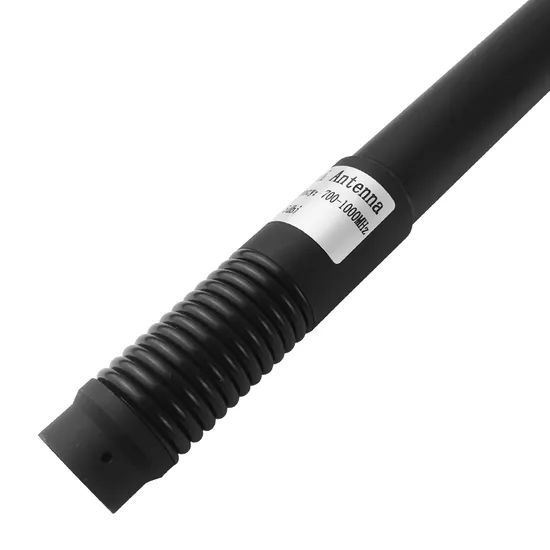

High gain 8 dBi 840-940MHz omni fiberglass antenna waterproof with spring anti drone jammer system This is a high-gain 8dBi drone signal antenna, the antenna has a 360° full-range signal block. The bottom-designed super spring can reduce vibration during use. when operating the antenna at max output over 50W or 100W. Shen Zhen Texin Electronic Co., Ltd. can customize according to request.
Features:
1.Small size ,weight is light ,easy to carry around.
2.When working , the spring can protect device and reduce shocked
3.High gain 8dBi highly efficient to emit anti drone signal
5.Support multiple frequency band like 400MHz 700MHz 800MHz 1.2GHz 2.4GHz
6. Can install portable anti drone jammer device for use
7.Using fiberglass material which is waterproof and good conductivity
8.50W 100W offered by factory
9.Using advance machina to test when produced
Application:
*Education :The anti-drone system is equipment in education so that students can know the development of technology.
*Government :This antenna can emit jamming signal of drone to protect privacy of key area .
*Agriculture:Prevent others from poisoning
*Security equipment :This antenna emit interference signal can protect our safety effectively
Frequency Range 840-960 MHz
Gain(dBi) 8±1dBi
VSWR ≤1.5
Polarization Vertical
Horizontal Beam width(0º) 360º
Vertical Beam width(0º) 12º
Ovality(dB) ≤±2dB
Input Impedance (Ω) 50Ω
Maximum input power(W) 100W
Input connector type N-J
Lightning Protection
Mechanical Specifications
DC Ground
Dimensions-mm(Height/Width/Depth) 32*710mm
Antenna weight(kg) 0.450KG
Rated Wind Velocity( m/s) 60m/s
Operational Humidity(%) 10- 95
Ra dome Color Black
Ra dome material glassed steel
Operating temperature(ºC) -40~55 º
Installation Method Machine installation

Packaging:
Pictures: Company files
Since 2014, Shenzhen Texin Electronics Co., Ltd (Brand name: TXtelsig or TeXin) is the professional manufacturer of the innovative signal jammer catering to the international quality standard and the market need. Our factory locates in theShenzhen city, Guangdong Province, China, with the whole 2ND floor factory the SMT machine, assembly and the warehouse, and the No. 303 in 3rd floor the office room.
