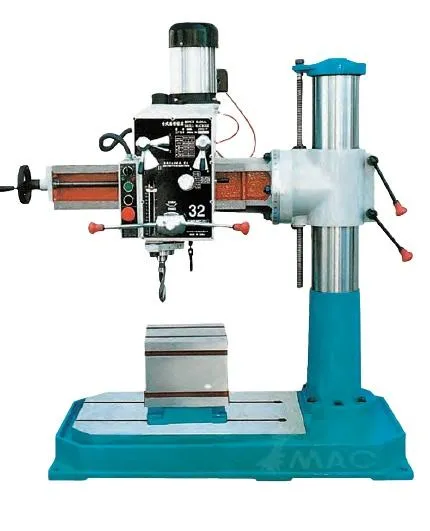

Automatic 50 mm Vertical Mechanical Radial Arm Drilling Machine

Product Description

Products Description
Introduction
Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping and scraping the end face and other forms of processing. It is easy to operate, flexible, wide range of application, typical, especially suitable for single piece or batch production of large parts with holes, is a common machine tool in general machining workshop.





Standard Accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts, Grease gun, Reduction sleeve, English operation manual.
Features
With antisticlooking and its general arrangement is very harmonized. With mechanical gear change, convenient to operate.

With comatic ascent and decent cranking bar and production efficciency iss high

With construction high precision and durable in use.
Specifcation

Model	Z3040x13/1
Max.drilling capacity	40mm
Distance spindle axis to column generating line	300~1300mm
Diameter of column	300mm
Spindle taper	MT4
Spindle travel	280mm
Spindle speeds range	32~2500r/min
Spindle speeds series	16
Range of Spindle feeds	0.10~1.25mm/r
Mpindle Spindle feeds	8
Distance spindle nose to working surface of base	300-1320mm
Dimension of worktable	600X450X450mm
Dimension of base	2050X900X200mm
Overall size	2100X900X2300mm
Power of Main motor	3kw
G.W/NW	2500/2100kg
Packing dimension	235X106X245cm

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
