Versatile PS Foam Plastic Recycling Machine with Granulating Function

Product Description

Introducing our Plastic Recycle Machine, a state-of-the-art Die-Cutting EPS Recycle Machine renowned for its impressive large output, setting new standards in the recycling industry.
Outstanding Machine Features
--Experience the efficiency of a Big silo with an advanced cyclone separator device, enhancing separation processes.
--Equipped with a wide inlet grinder and a powerful blower, ensuring maximum transport distance capabilities of up to 50 meters.
--Featuring both a primary and secondary extruder, each with a hydraulic screen changer, for seamless operation.
--Versatile design with both die-cutting and straight cutting types available to suit various production needs.
--Enjoy easy operation, coupled with stable performance, high-quality output, and advanced automation for efficiency.
--Incorporates a reducing screw for enhanced processing capabilities.


Detailed Specification

Model	HLFSJ-190/130
Capacity	300-400kg/h
Power	261KW
Cooling water	0.3-0.4Mpa
Screw L/D	21.4/1(First screw); 12:1(Second screw)

Explore Our Range of Different Models

Model Parameters	Unit	HLFSJ-80	HLFSJ-130	HLFSJ-150/120	HLFSJ-190/150
Capacity	Kg/h	30-50	100-180	180-220	300-400
Inlet width of crusher	mm	/	1100	1420	1420
Power of crusher	kw	/	22	30	30
Max delivery of blower	m	/	50	50	50
Power of blower	kw	/	4	4	5.5
Volume of Silo	m2	/	9	9	9
Diameter of the primary screw	mm	80	130	150	190/150
L/D	/	18	18.5:1	18.7:1	21.4:1
Diameter of the secondary screw	mm	/	100	120	130
L/D	/	/	11:1	11:1	12:1
Installed power	kw	50	90	144	261
Cooling water pressure	Mpa	0.2	0.3-0.4	0.3-0.4	0.3-0.4
Installation size(LxWxH)	m	6x1.5x1.9	17x3.5x5.5	20x3.5x6.1	20x3.5x6.1
Weight	T	2	8	10	12

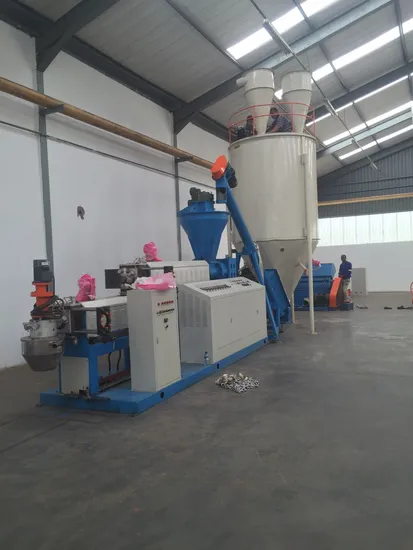

Captivating Photos
Secure Packing & Delivery

To ensure unparalleled safety of your goods, we offer professional, eco-friendly, and efficient packaging services, tailored for convenience.



Comprehensive FAQ
1. Q: What material can this machine process? A: Versatile in function, it effectively processes EPS and foam PS materials, catering to diverse recycling needs.
