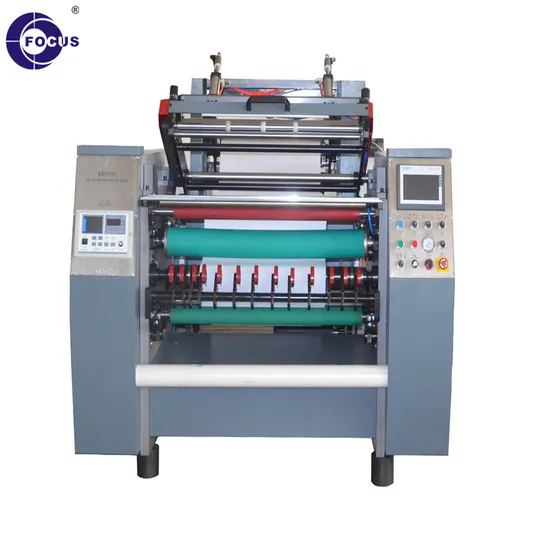

Slitting Rewinding Machine
| US$2,000.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Blade Material
Stainless Steel
Computerized
Computerized
Max. Width
900mm
Max. Diameter
1000mm
Motor
200W
Thickness Range
50g-120g
Max. Speed
120m/Min
Size
4000*1700*1600mm
Weight
1900kg
Voltage
3 Phase 220V 60Hz Or380V 50Hz
Max. Rewinding Diameter
200mm
System
Siemens PLC
Screen
Touch Screen
Core Type
Core or Corless
Layers
1~3
Payment
T/T
Lead Time
30 Days
Transport Package
Wooden
Specification
15CBM
Trademark
FOCUS
Origin
China
HS Code
8501510010
Production Capacity
200 Sets Per Month
Product Description
Technical Parameters
| Items | Parameters |
| Max. Parent Web Width | 800mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 160mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 50-400gsm |
| Max. Machine Speed | 120m/min |
| Overall dimension | 4000*1700*1600mm |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
1. Are you a factory or trading company?
A: We are a factory with export license.
2. Can you do OEM?
A: No, we only do own brand "FOCUS", never do OEW.
3. Can I have a sample?
A: Yes, free samples could be provided for your check, the freight will be collected.
4. How long is the delivery time?
A: Normally one month, it also depends on the time when you confirm the order.
5. Do you have oversea branch of office?
Yes, we have three oversea offices separately located in Peru, Singapore and Bangladesh.
