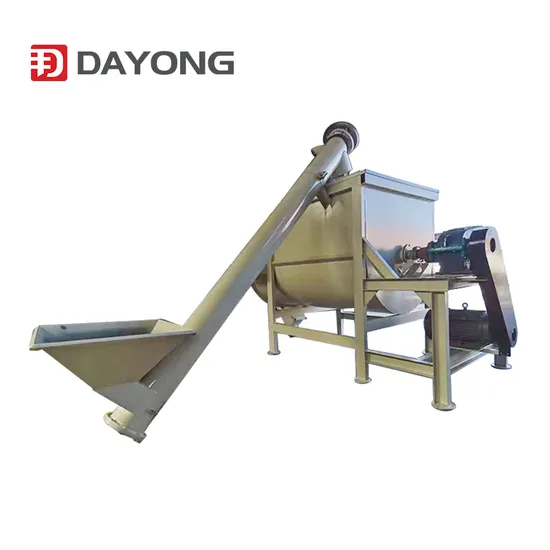

1500 Liters Industrial Customize Design Horizontal Ribbon Mixer Dry Powder Full Production Line

Product Description

Product Description Horizontal ribbon mixer by a U-shaped shell, spiral mixer into the blades and drive components; spiral ribbon blade is double internal and external structure of the material from both sides of the outer spiral to the central collection, inner spiral of the material transport from the center to both sides , forming convective mixing . Horizontal ribbon mixer for cohesive or cohesive mixture of powder and add the liquid and pasty powder mixed materials with good results , cylinder cover can be made fully open the door , so that the equipment replace cleaning products.
Detailed Photos 1.Material
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different
Material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2.Motor
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.
Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
3.InletVarious inlets on the top cover of the barrel can be designed according to different situations. They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole. The top cover can be designed as fully-opened lid for easy cleaning.

4.Discharge port
The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5.Mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
Product Parameters

Model	A mixed(kg)	Power(kw)	Spindle speed(r/min)	Weight(kg)
200	80-100	3	42	450
500	200-250	5.5	42	800
1000	400-500	7.5	42	1200
1500	600-700	11	32	1500
2000	800-1000	15	32	1800
3000	1200-1500	18.5	32	2000
4000	1600-2000	22	30	2500
6000	2400-3000	37	28	3000
8000	3200-4000	45	28	4000
10000	4000-5000	55	22	5000

WHY CHOOSE US?
1.It is made up of stainless steel
2.The mix blade is ribbon blade
3.This ribbon mixer can add the heating or cooling jacket, match the complete spray system( if consumer need, we can match for your)
4.Can match the frequency changer( to adjust the ribbon blade rotation speed)
5.Meeting ISO9001,CE and SGS certificate
6.Guarantee:1 year
7.Provide integrated production line services Company Profile Xinxiang Dayong Machinery Manufacturing Co., Ltd. was established in 1987 and has more than 30 years of OEM production experience. The main products are SCREENING,CONVEYING,POLISHING,GRINDING&MIXING EQUIPMENT.
Our products have been exported to Europe, North America, South America, Asia, Oceania, Africa. We have local agents in Brazil and the Philippines. We have won a high reputation among new and old customers. All our products are reasonably designed and made of high-quality materials, which are ideal choices for customers. Adhering to "Science and technology as the guide, quality as the center, to meet customer needs", Dongzhen will continue to improve to provide better products and services.
