Ready Urban Construction Concrete Mixer Ttruck 2.6 Cubic Meter
| US$19,754.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JBC-26
Emission Standard
Euro 2
Fuel
Diesel
Maximum Horsepower
106HP
Condition
New
Product Name
Concrete Mixer Truck
Product Model
Jbc-26
Engine Type
Diesel
Color
Customizable
Mixing Capacity
2.6cbm
Loading Bucket Capacity
0.6cbm
Weight
6500kg
Size
7800*2750*4100 mm
Brand
Sdjk
Transport Package
40hq
Specification
7800*2750*4100 mm
Trademark
SDJK
Origin
Shandong
HS Code
8705400000
Production Capacity
500pieces/Month
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 500.00cm
Package Gross Weight
1000.000kg
Product Description
Product DisplayProduct details and accessories

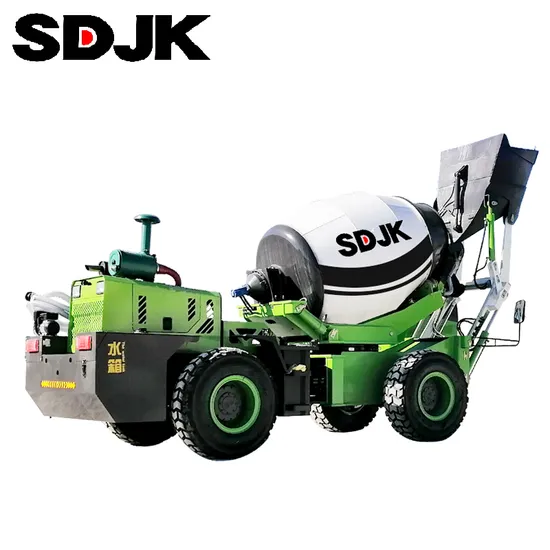

The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output. 1.JBC-26 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture. 2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%. 3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires. 4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively. 5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
| Model | JBC-26 | Max. Water suction Volume | 250 L/min. (Self-priming electronic water pump) |
| Mixing Capacity | 2.6 m³ | Water tank Volume | 2x250 L |
| Geometrical Capacity | 3.6 m³ | Max. Travel Speed | 30 km/h |
| Concrete Output | 2.6m³/batch, 10.4m³/h | Grade ability | 40° |
| Drum Rotating Speed | 13 rpm | Min. Turning Radius | 5300 mm |
| Drum Rotating Angle | 270° | Operating Weight | 6500 kg |
| Model | 4102 | Max. Load | 6200 kg |
| Type | In-line, 4-Cylinder, 4-Stroke, Turbo Charged, Water Cooled | Max. Gross Weight | 12700 kg |
| Rated Power | 78 KW (106HP) @ 2400 rpm | Overall Dimension (L×W×H) | 7800*2750*4100 mm |
| Emission Standard | Euro II | Fuel Tank Volume | 75 L |
| Loading Bucket Capacity | 0.6 m³ | Total Hydraulic System Capacity | 75 L |
| Loading Times to Full Drum | 5 Times | Oil Tank Volume | 16 L |
| Discharge chute | 2 Sets |
