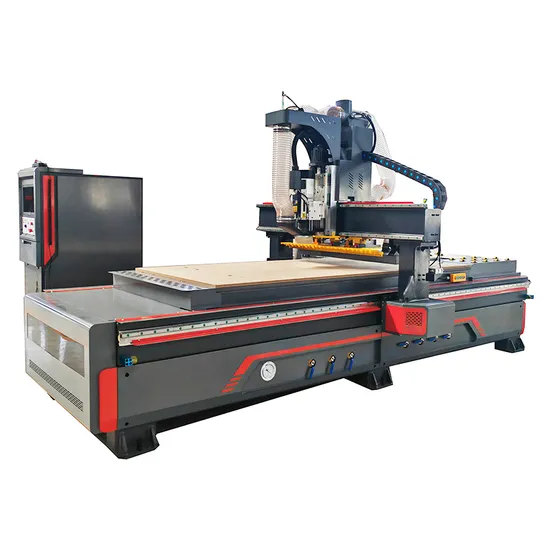

Wood Cabinets Producing CNC Router with Atc 9kw Spindle

Product Description

Product Description
Detailed Photos

Thick steel welded bed structure with thick steel gantry rail control cabinet , with drivers, controller, inverter, and other electric parts
linear ATC 12 cutters storage 9KW air cooling spindle

Auto oil lubricating system Taiwan HIWIN square guide rails with helical rack transmission
positioning cylinders to calibrate the board position Auto pushing device to push the material automatically after working

Auto tool calibrator for cutters height 7.5KW water vacuum pump
Dust collector with two bags 5.5KW water vacuum pump 7.5KW Tool box (with cablets, cutters, etc)
Application

1) Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Wook kitchen cabients, wardrobe, etc, can be used for wood engraving or cutting.
Product Parameters

Description	Parameter
	ZK 1325	ZK1530	ZK2030
Working Area (X*Y*Zmm)	1300x2500x200mm	1500X3000X200	2000X3000X200mm
Max Moving Speed	100m/min
Max Engraving Speed	25m/min
Frame	Welded Steel
Spindle Power Motor	9kw	Optional china made brand
Spindle Speed	0-24000rpm
The number of knife	12 pcs	According to demands
The manner to change knife	In-line	Option: round plate
XYZ traveling positioning accuracy	±0.04/300mm
XYZ repositioning accuracy	±0.04mm
Working Voltage	AC380V/50/60Hz,3Ph
Drive Motors	Servo Motors and Drivers
Command language	G code,HPGL
Operating system	Taiwan SYNTEC control System
Software Compatability	Type3,Ucancam, Artcam Software
Diameter of tools	Φ3.175,Φ6, Φ12.7
Running Environemt	Temperature: 0°C~45°C
	Relative humidity: 30%~75%

After Sales Service

1. Warranty & Aftersales service:
A)warranty is 2 years
B)24 hour technical support by email or calling
C)User-friendly english manual for machine using and maintaining
2. Rationalization of pre-sales consulting
Packaging & Shipping
Jinan Zhongke CNC Equipment Co., Ltd. is a well-known manufacturer of CNC equipment in China. Mainly engaged in the research and development, production, marketing, and service of carving machines, CNC cutting machines, panel furniture cutting machines, panel furniture production lines, woodworking carving machines, stone carving machines, jade carving machines, olive core carving machines, three-dimensional carving machines, advertising carving machines, plasma cutting machines, CNC carving machines, metal carving machines, high-precision multifunctional carving machines. In the industrial field, we provide CNC processing equipment, services, and customized solutions to customers around the world, realizing potential customer growth and continuously creating long-term value for customers. With the spirit of striving for progress and sharing achievements, as well as the service tenet of ensuring reputation and putting service first, we are steadily moving forward and continuously developing.
As a professional research and development enterprise for CNC equipment in China, we are dedicated to providing customers with excellent after-sales service, including product design, installation, training, and maintenance; Our service tenet is to provide customers with technologically advanced, reliable products and complete technical solutions, and to pursue customer satisfaction.
The company focuses on customer needs and caters to domestic and foreign customers. Based on the pursuit of quality, it can meet the personalized customization and cultural services of customers according to existing technological conditions. It also follows the progress of technology and pursues the improvement of quality. At the same time, it invests in the technology research and development department to develop new products and provide high-quality and advanced CNC engraving equipment to the world.
If you have special requirements, of course, we can customize the machine according to your requirements to suit your needs.
