High-Precision Vortex Flowmeter for Low Pressure Steam Applications

Product Description

Product Description Product Overview
The ZZYS30 vortex flowmeter from Shandong Zhongziyi Intelligent Technology Co., Ltd. is an advanced velocity flow instrument, renowned for its versatility and wide range of applications.
Ideal for the precise measurement, monitoring, and control of liquids, steam, and various gases, this flowmeter provides users with unparalleled accuracy and reliability.
Featuring a state-of-the-art structure, it boasts exceptional resistance to mechanical vibrations, impacts, and contamination, ensuring robust and durable performance.
With its innovative design, the ZZYS30 has no moving parts, eliminating wear and tear and the need for mechanical maintenance. It guarantees low pressure loss, stable performance, and high measurement accuracy.
Ease of installation is a key advantage, and the sensor and signal converter can be tailored to match specific requirements, ensuring seamless integration.
Product features:
Boasting a broad application range, the ZZYS30 is suitable for measuring the flow of steam, gas, and liquid with high precision.
Excellent vibration resistance and zero drift at the zero point effectively mitigate external vibration influences, ensuring consistent accuracy.
The ZZYS30 offers integrated temperature and pressure measurement options, significantly reducing installation costs for users.
It supports (0-5) kHz frequency output, (4-20) mA output, and HART/Modbus protocol communication, providing flexible and reliable data transmission options.
Enhanced with Bluetooth communication for convenient parameter setting, it features a wear-resistant and dirt-resistant design, eliminating the need for mechanical maintenance. Longevity and explosion-proof safety further add to its appeal.

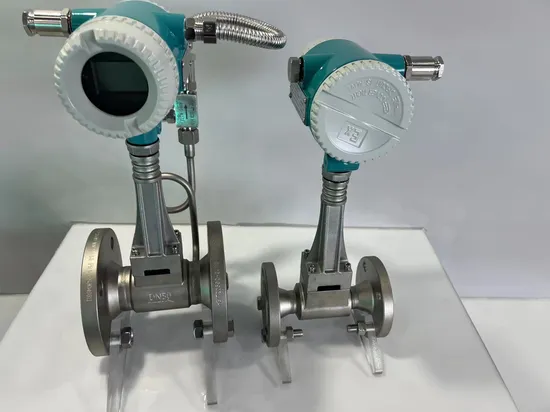

Detailed Photos Product Parameters Technical Index
Measurement Medium: Gas, Liquid, Steam
Connection Method: Flange Clamp Type, Flange Type, Insertion Type
Caliber Specifications:
Flange Clamping Type: 25, 32, 50, 80, 100.
Flange Connection Type Caliber Selection: 100, 150, 200
Flow Measurement Range: Normal Measurement Flow Velocity Range - Reynolds Number 1.5×104~4×106; Gas 5~50m/s; Liquid 0.5~7m/s.
Normal Measurement Flow Range: Liquid,
Gas Flow Measurement Range: See Table 2.
Steam Flow Range: See Table 3.
Measurement Accuracy: 1.0 Class, 1.5 Class
Measured Medium Temperature:
Room Temperature: -25ºC~100ºC, High Temperature: -25ºC~150ºC, -25ºC~250ºC Output Signal: Pulse Voltage Output Signal, High Level 8~10V, Low Level 0.7~1.3V. Pulse Duty Cycle is about 50%, Transmission Distance is 100m.
Pulse Current Remote Transmission Signal: 4-20 mA, Transmission Distance is 1000m. Instrument Use Environment: Temperature: -25ºC~+55ºC, Humidity: 5~90% RH50ºC. Material: Stainless Steel, Aluminum Alloy
Power Supply: DC24V or Lithium Battery 3.6V
Explosion-Proof Grade: Intrinsically Safe iaIIbT3-T6, Protection Level IP65.

Technical parameters
Medium	Steam, Gas, Liquid
Measuring range	See flow1-3
Caliber	DN15, DN25, DN40, DN50, DN80, DN100, DN200, DN250, DN300
Medium pressure	≤100 bar, more pressure need be customized
Medium temperature	-40°C~+240°C
Ambient temperature	Ordinary type: -40°C~+85°C Ex-proof type: -40°C~+60°C
Accuracy	Liquid, Re≥20000 is ±1.0%, gas and steam, ±1.5%
Repeatability	±0.3%
Material	Measuring pipe:304,316L, HC276
	Sensor: 316L, HC276
	Converter shell: casting aluminum
Instrument caliber	Flange connection: DN15-DN300
	Clamping connection: DN15-DN100
Flange standard	DIN, ANSI, HG20592 (Can be customized)
Pressure loss Gasandliquid saturated steam	ΔP=Cqv²Px ΔP: pressure loss(pa) qv: volume flow qm: mass flow ΔP=Cqm²Px PX: density C: constent
Display	Two-line LCD display, four button operation Instantaneous flow, accumulated flow, vortex frequency, medium temperature, pressure(selectable), circular or non-circular display
Power supply	Ordinary type: (14~36) VDC Ex-proof type: (14~30) VDC Battery power supply
Loading	No-ex-proof: RB=(UB-14DVC)/22MA≤1200Ω Ex-proof: RB=(UB-14DVC)/22MA≤600Ω
Output	Two wire 4~20mA
Ex-proof class	Exd II CT6 CE19.1438 Ex ( ia ) II CT6
Cable interface	1/2''NPT( Internal thread, recommended), M201.5 (Internal thread)
Housing protection class	IP67
Connection type	Flange (DN15-DN300), Clamping (DN15-DN100)
Mounting type	Integral mounting, split mounting (special shielded cable connect the pipe and indicator)

Measuring Range:

Gas
Air: t=20°C p=1.013bar abs =1.7210-4 mpa.s Q: flow (sheet 1)
Nominal diameter	Internal diameter	Qmin(m3/h)	Qmax(m3/h)
DN15	16	6.79	32.56
DN25	24	10.20	113.94
DN40	38	25.3	326.63
DN50	50	43.89	565.49
DN80	74	96.14	1238.64
DN100	97	165.14	2128.27
DN150	146	374.23	4821.57
DN200	193	702.95	9056.8
DN250	253	1123.7	14478
DN300	305	1632.1	21028

Liquid
Water: t=20°C p=1.013bar abs ≤10cp Q: flow
Nominal diameter	Internal diameter	Qmin(m3/h)	Qmax(m3/h)
DN15	16	0.45	5
DN25	24	0.81	11.40
DN40	38	2.04	28.57
DN50	50	3.53	49.47
DN80	74	7.74	108.37
DN100	97	13.30	186.21
DN150	146	30.13	421.86
DN200	193	52.66	792.42
DN250	253	90.5	1266.8
DN300	305	113.41	1839.8

Saturated steam
Nominal Diameter	Inner Diameter	Mass flow Qm (kg/h) under different pressure and density
		P=1bar G		P=3.5bar G		P=5.2bar G		P=7 bar G
		ρ=1.13kg/m3		ρ=2.43kg/m3		ρ=3.28kg/m3		ρ=4.17kg/m3
		t=120.6°C		t=148.2°C		t=160.4°C		t=170.6°C
		min	max	min	max	min	max	min	max
DN15	16	5.87	36.97	7.68	79	8.93	106.68	10.06	135.69
DN25	24	11.82	129.39	17.26	276.4	20.09	373.53	22.66	474.82
DN40	38	29.64	370.71	43.33	792.33	50.63	1070.2	56.8	1361.2
DN50	50	51.31	641.82	75.02	1371.8	87.19	1852.8	98.33	2356.6
DN80	74	112.41	1405.8	164.33	3004.7	191	4058.4	215.39	5161.8
DN100	97	193.14	2415.5	282.36	5162.7	328.16	6973.3	370.09	8869.2
DN150	146	437.56	5472.4	639.69	11696	743.45	15798	838.44	20093
DN200	193	821.91	10279	1201.6	21970	1396.5	29675	1574.9	37743
DN250	253	1313.9	16433	1920.9	35122	2232.5	47439	2517.7	60337
DN300	305	1908.3	23866	2789.8	51010	3242.4	68899	3656.6	87630

Nominal Diameter	Inner Diameter	Mass flow Qm (kg/h) under different pressure and density
		P=10.5 bar G		P=14 bar G		P=17.5 bar G		P=20 bar G
		ρ=5.89kg/m3		ρ=7.6kg/m3		ρ=9.32kg/m3		ρ=10.54kg/m3
		t=186.2°C		t=198.5°C		t=208.5°C		t=215.6°C
		min	max	min	max	min	max	min	max
DN15	16	12.78	191.71	16.51	247.55	20.23	303.36	22.89	343.32
DN25	24	26.93	670.88	30.6	857.88	33.87	955.48	36.04	1201.41
DN40	38	67.51	1878.2	76.72	2150.7	84.93	2395.3	90.35	2557.7
DN50	50	116.89	3251.7	132.82	3723.4	147.03	4147	156.42	4428.1
DN80	74	256.03	7122.4	290.93	8155.8	322.06	9083.7	342.62	9699.3
DN100	97	439.91	12238	499.9	14013	553.38	15608	588.69	16666
DN150	146	996.62	27725	1132.5	31747	1253.7	35359	1333.7	37756
DN200	193	1872.1	52079	2127.3	59634	2354.9	66419	2505.2	70921
DN250	253	2992.7	83254	3400.71	95333	3764.6	106180	4004.9	113380
DN300	305	4346.5	120920	4939.1	138460	5467.5	154210	5816.5	164660

Selection list
model								Explanation
ZZY30
Connection	F							Flange connection
	W							Flange clamping
Temperature Resistance Class		T1						Match with 250°c probe
		T2						Match with 350°c probe
Nominal diameter			015					DN15
			020					DN20
			025					DN25
			032					DN32
			040					DN40
			050					DN50
			065					DN65
			080					DN80
			100					DN100
			125					DN125
			150					DN150
			200					DN200
			250					DN250
			300					DN300
Structure				Z				Integrated T and P compensation
				F				Regular model
				S				Split
Material				R1				304
				RL				316L
Instrument model					N			24V power supply Output 3 wire pulse
					V1			24V power, on-site display, 4-20mA, RS485, Impulse output
					V1 B			24V +battery power supply, on-site display, 4-20 mA, RS485, pulse output
Pressure Class							N	Normal
							H	High pressure

Certifications PACKING & SHIPPING DETAILS
We will deliver your order at the earliest date as required by you, ensuring timely and efficient service. Installation Instructions Installation Requirements
Piping condition
The installation of vortex flowmeter requires a certain straight pipe section before and after, and the common situations are as follows (D is the diameter of the pipe) :

Piping condition	upstream	Downstream
Concentric shrinkage pipe full open gate valve	15D	5D
∠90° square elbow	20D	5D
Same plane 2∠90°elbow	25D	5D
Semi-open gate valve regulating valve	50D	5D
Different plane 2∠90°elbow	40D	5D
With rectifier tube bundle	12D	5D

1.
The sensor should be installed on a pipe that is horizontal, vertical, or inclined (with the liquid flowing from bottom to top) and has the same diameter as the sensor. There should be a certain length of straight pipe upstream and downstream of the sensor, with the length meeting the requirements of 15-20D for the front straight pipe section and 5-10D for the rear straight pipe section.
2.
The pipe near the liquid sensor should be filled with the liquid being measured.
3.
The sensor should not be installed on a pipe with strong mechanical vibrations.
4.
The inner diameter of the straight pipe section should be as consistent as possible with the sensor diameter. If they cannot be the same, a slightly larger diameter pipe should be used, with an error of ≤3% and not exceeding 5mm. The sensor should not be installed in locations with strong electromagnetic interference, limited space, or inconvenient maintenance. Installation requirements.
5.
Horizontal pipeline installation is the most common method for flow sensors. When measuring gas flow, if the gas being measured contains a small amount of liquid, the sensor should be installed at a higher point in the pipeline. When measuring liquid flow, if the liquid being measured contains a small amount of gas, the sensor should be installed at a lower point in the pipeline.
6.
Sensor installation in vertical pipelines. When measuring gas flow, the sensor can be installed on a vertical pipeline with no restriction on flow direction. If the gas being measured contains a small amount of liquid, the gas flow should be from bottom to top. When measuring liquid flow, the liquid flow should be from bottom to top to avoid additional weight on the probe.
7.
Side installation of sensors on horizontal pipelines. Regardless of the fluid being measured, sensors can be side-mounted on horizontal pipelines, especially when measuring superheated steam, saturated steam, and low-temperature liquids. If conditions allow, side mounting is preferred as it minimizes the temperature impact on the amplifier.
8.
Inverted installation of sensors on horizontal pipelines. This installation method is generally not recommended. It is not suitable for measuring general gases or superheated steam. It can be used for measuring saturated steam and is suitable for measuring high-temperature liquids or situations where pipelines need frequent cleaning.
9.
Installation of sensors on pipelines with insulation layers. When measuring high-temperature steam, the insulation layer should not exceed one-third of the bracket height.
10.
Selection of pressure and temperature measurement points. Depending on the measurement requirements, when pressure and temperature need to be measured near the sensor, the pressure measurement point should be 3-5D downstream of the sensor, and the temperature measurement point should be 6-8D downstream of the sensor.
