High-Performance Paint Stop Filters for Efficient Booth Operations

Product Description

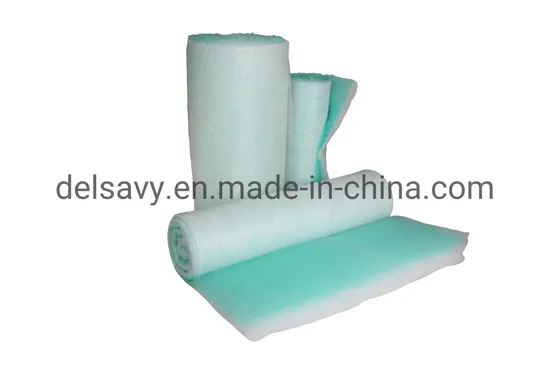

Product Description Made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system High strength fiberglass increasing structure; the windward side is green, the leeward side is white. The low compression performance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust No flammability, heat resistance 170ºC The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition Outer frame may choose the paper frame, the galvanization iron frame, or aluminums alloy frame.
Using: Thick dust filtration for the general air-conditions system. Applied to the dry spray painting platform and the exhaust gas system of the automobile spray painting room. It is environment-friendly, reducing the pollution to the environment
Specification:

Model	PA-50	PA-100
Weight	240 G/M2	340 G/M2
Filter efficiency	92%	98%
Initial resistance	15PA	25PA
Final resistance	150PA	200PA
Air velocity	2.5m/s	2m/s
Dust holding capacity	3500 g/sqm	4600g/sqm
Maximum temperature	170ºC	170ºC
Thickness	50mm	100mm
