China Vertical Drill Machine Z5125 Cheap High Quality Square Column Upright Drilling Machinery

China Vertical Drill Machine Z5125 Cheap High Quality Square Column Upright Drilling Machinery

US$3,500.00-7,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5125
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
China Vertical Drilling Machine Z5125 Cheap High Q
Max Drilling Dia
25
Max Feed Resistance
9000
Max. Spindle Allowable Torque
160
Spindle Travel
200
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Production Capacity
200

Packaging & Delivery

Package Size
98.00cm * 80.00cm * 230.00cm
Package Gross Weight
1200.000kg

Product Description

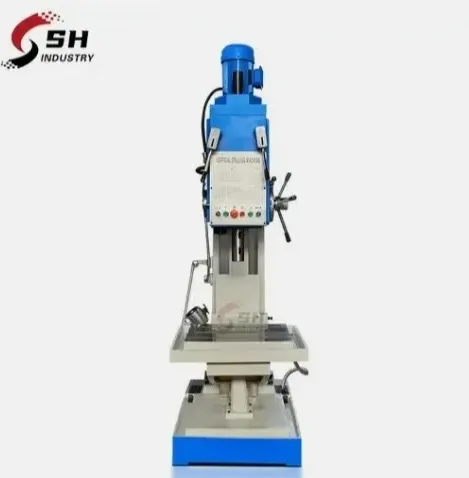

China Vertical Drilling Machine Z5125 Cheap High Quality Square Column Vertical Drilling Machinery
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:
Specifications Z5125
Max drilling dia 25mm
Max feed resistance 9000N
Max. spindle allowable torque 160N.m
Spindle taper Morse No. 3
Distance from spindle axis to column guideway 280mm
Spindle travel 200mm
Spindle box travel 200mm
Spindle speed 50~2000r/min(9)
The amount of feed(mm/rev) 0.056-1.80mm/r (9)
Working table stroke 310mm
Working table surface size 400×550mm
Distance from spindle nose to table surface 710mm
Main motor power 2.2kw
Cooling pump flow 25L/min
Overall dimension 980*807*2302mm
N/W 1200kg

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
