Hot Sale Plastic PP PE Raffia Film Agriculture Greenhouse Packing Split Film Yarn String Extruder for Production of Polypropylene Twine

Product Description

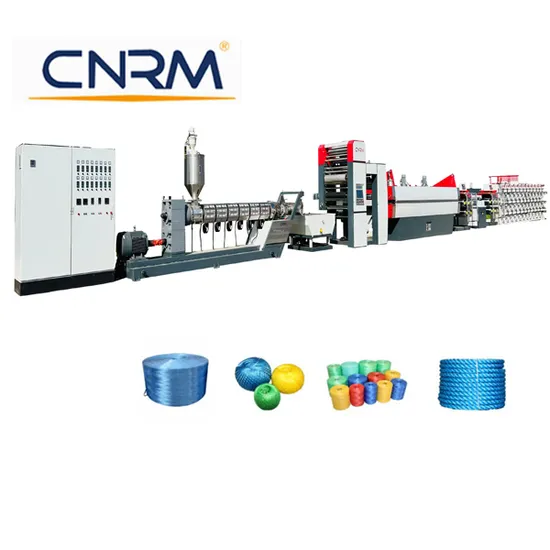

Plastic Polyethylene Polypropylene PP PE Raffia Film Extrusion Machine
Product Description
1.Brief introduction
PP raffia extruder is for making raffia yarn, pp film yarn, pp split film yarn, pp tape yarn.
The line is designed and manufactured by introducing and absorbing foreign advanced techniques, and by improving domestic equipment inadequacies-It is suitable for forming, and rolling various flat yarn of thermoplastic plastics, such as the polypropylene, high density polyethylene and linear low density polyethylene, etc.
(1) Raw material: PP(polypropylene), HDPE( polyethylene) ,raffia , nylon.
(2) 100% new or recycle mixed material2 Capacity: 500-5000kg/24hours
(3) Application: pp packing rope, baler twine, tomato twine, agriculture twine, etc..

Product Parameters
Technical parameters

Item	HDSLJ--70	HDSLJ--80	HDSLJ--90
T-Die Width	600mm	800mm	1000mm
Dia of Screw	70mm	80mm	90mm
Ratio of L/D	33:1	33:1	33:1
Rotation Speed of Screw	20-90r/min	20-90r/min	20-90r/min
Drawing Ration	4--10	4--10	4--10
Power Consumption	100kw/60kw	130kw/80kw	150kw/100kw
Max Outputcapacity	1200kg/24h	2000kg/24h	3000kg/24h
Machine Weight	9000kg	12000kg	15000kg
Machine Dimension (L*W*H)	25m*2m*2m	26m*2.2m*2.1m	27m*2.2m*2m

3.Main Features
(1). Strong raw material, we adopt strong new material for machine frame production, making the machine running smoothly when production.
(2). Good quality electric parts, make sure the machine can use for long time without problem.
(3). Strong technical team and full experience for costuming the machine as client's production request.
(4). Professional pre-sale service, help you get exact machine for your product.
(5). Easy control and adjust system, make your production more easy and fast.
(6). Responsible after sale service, help you install the machine, train you use the machine step by step.
4. Product Overviews
(1)Extruder head
♦The barrel heating with cast aluminum heater and sub-sections were controlled, the temperature in the range of 0 ~ 300 ºC, is by the temperature controller
♦Double-alloy treatment of screw, that can protect screw and suitable for 100% recycle
♦Material of screw and barrel is 38CrMoAlA,with nitride treatment ,nitride thickness up to 0.8mm,hard ,wear resistance, longer life
(2) Film lifting and cutting machine
♦Lifting and cutting part, and remove the water from film and spread it , make the final film with same size, compared with old-styled, it can make film more even and spread better.
♦Moving knife, can change film size easier and no need stop extruder
♦Pneumatic device and liner ,can move roller easier and display speed Synchronous
(3) Hot air oven
♦Chrome plated for heating plate, high hardness 400-1200hv,wear resistance, heat resistance
♦Material of heating plate is stainless steel ,thickness is 10mm,more durable
♦Heating by quartz tube, safety, energy-saving and efficient
(4) Stretch roller
♦Seven-roll mirror traction roller, after hard chrome and mirror treatment, chrome-plated thickness of 8s, wear, the surface is bright, no rust, high grade.
♦The extruder head, stretch roller , set the linkage device, can be adjusted separately at their speed, while in accordance with a certain percentage at the same time to enhance the speed, or reduce the speed, so that the wire diameter uniform, stable weight, easy to operate, save time and effort
♦Bearings is adjustable spherical roller type, good axial force and radial force
♦Hardened bevel gear drive, gear and bearings with forced oil spray lubrication
(5) Yarn Winder
♦ Formal yarn winder: torque motor:2.5N.m, max 20kg/spindle,Ø400mm*200mm
(6) Final products
Related Machines
After Sales Service
FAQ
(6)FAQ 1.Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
2.Q: Can we go to your factory discussing more detail and checking the quality of the machine?
A: Yes, no problem, welcome to our factory and we will do our best to help you.
3.Q: Can we inspect the machine before delivery?
A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.
4.Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
5.Q: When can I expect delivery of my item?
A: All items are dispatched within one week if have stock. Production time will be one month.
6.Q: Are you a factory or trade company?
A: We are a factory of yarn extruder machine, yarn twister machine, rope machine, winding and packing machine. We have export right. Learn more about our company, please click here.
