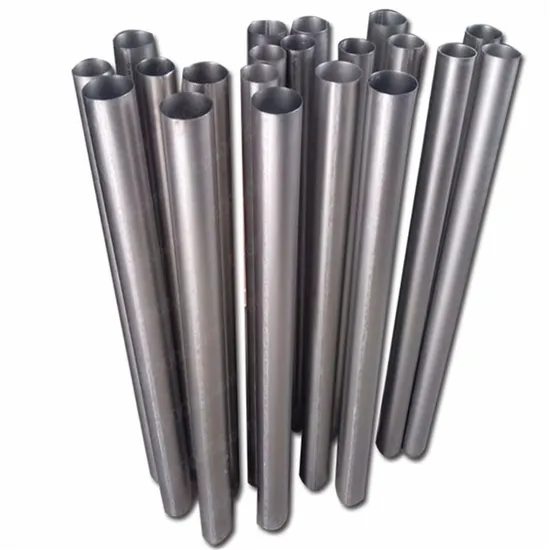

ASTM B338 Thin Wall Grade 2 Titanium Seamless Tube
| US$15.00-45.00 | 150 kg (MOQ) |
Basic Info.
Model NO.
Grade 2
Technique
Seamless,Hot Extruded,Welded,Cold Rolled
Grade
GR6
Shape
Round
Outside Diameter
3-210 mm
Thickness
0.2-30 mm
Length
up to 15 M
Material Grade
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9.Gr11.Gr12
Standard
ASTM B338,ASTM B337, ASTM B381,ASTM B861,ASTM B862
Surface
Acid Surface or Polishing
Transport Package
Wooden Box
Trademark
ZYTC
Origin
Tianjin, China
HS Code
8108904010
Production Capacity
500 Tons/Month
Product Description
Titanium grade 6 mechanical properties & hardness is that titanium grade 6 has a Rockwell Hardness C of 41. It has a Brinell
Hardness of 379. The Vickers Hardness of titanium grade 6 is 396. The Knoop Hardness of titanium grade 6 is 414. The Elongation
at Break of titanium grade 6 is 10%. The Creep Strength of titanium grade 6 @Temperature 455 °C is 210 MPa .
The Creep Strength of titanium grade 6 Temperature 851 °F is 43500 psi (For a Time >=100 hour).
With regards to titanium grade 6 tensile strength & thermal conductivity, the Ultimate Tensile Strength of titanium grade 6 is 1170 MPa
(170000 psi). The Yield Tensile Strength of titanium grade 6 is 1100 MPa (160000 psi). The Thermal Conductivity of titanium grade 6
is 6.70 W/m-K (46.5 BTU-in/hr-ft²-°F). The International Specifications of titanium grade 6 are W. NR. 3.7114, W. NR. 3.7115.
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pb | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
★Aerospace industry
★Chemical and marine applications
★Electroplating industry
★Medical industry
★Nuclear industry
★Hydro-carbon processing
★Airframe skin
★Desalination
★Chlorate manufacturing
Production Process
