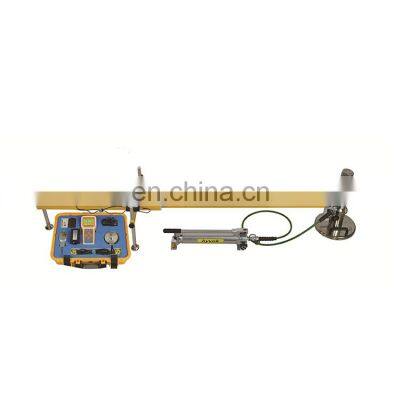

Plate bearing test bearing capacity plate load testing apparatus

Plate bearing test bearing capacity plate load testing apparatus

Product Description

Product Description
Plate bearing test bearing capacity plate load testing apparatusUsage OverviewEv2 Plate bearing test set is used to measure the settlement5 value of Subgrade under static load, so as to evaluate the bearingcapacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway,airport, urban traffic, port, wharf and industrial and civil building subjected to static load.After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading iscarrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate andthe corresponding central settlement value S of the bearing plate.Product Description · Integral design, compact size · Easy to carry and make work efficient · Measurement data can be calibrated manuallySpecificationModelEV2UsageDeformation Testing MachineRate of workElectronicApplicationEffective depthNormal condition 500mmWorking ambientWorking ambient -10℃~40℃ Humidity <90%HRElecteic sedimentation meterSizeScreen size:3inch Overall size:100×205×40mm Net weight:0.8kgStorage amount400 groups testing curvePowder supplyLithium battery, 18hrs continuous work timeDisplay methodChinese/EnglishPrinterConnection methodWireless Bluetooth printerTransducerPressure transducer100kNDisplacement, transducer25mm, 0.01mmMeasure deviceBearing plateDiameter:300mmThickness:25mmWeight:17.5kgLoading deviceHydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mmSedimentation measure deviceThree point frame, flexible and rotary lever arm, adjustable base Dimension:2320*570*420mmWeight:12.5kgUnpacking displayOur Advantages1.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.2.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproofcapability and ensures accurate data.3.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and withbacklight, has better visibility in various environments;4.Automatically calculate Ev1, Ev2 and Ev2/Ev1 values and display curves.5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of thetest results.6.USB transmission interface, easy to connect with the computer.Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related ProductsSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
