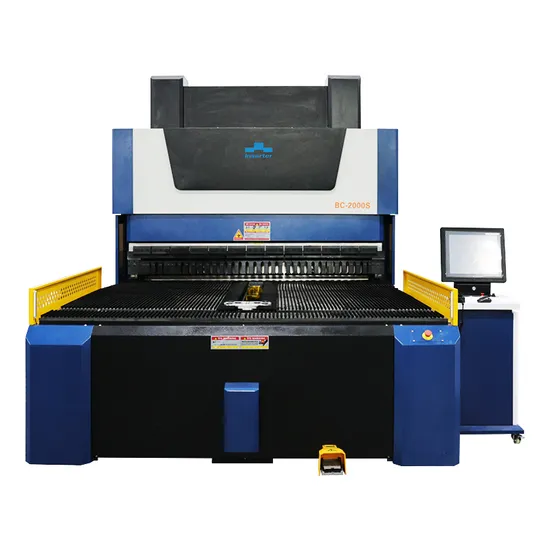

Molding Size 1250*1500*300mm User-Friendly and Programmable Vacuum Suction Panel Bender

Product Description

Product Features This panel bender is fast and simple to program. lt can realize the concurrent linkage ofmultiple axes, control the suction cup to absorb the plate, control the feeding or rotation ofthe plate, and realize the multi-sided and multi-knife bending of the workpiece through theuniversal bending tool. Bending efficiency, accuracy and consistency are significantly im-proved.
If you have related product needs, our company is your best choice!
The characteristics of the bending center: 1.High speed and fast forming with excellent consistency. 2.Strong automation capabilities, simple operation, and low skill requirements for operators. 3.Effective for complex bending and forming, capable of various functions like upward bending, downward bending, arcs, and closed edge pressing. 4.Easy manual loading and unloading, with an external interface for robot and rack loading/unloading integration. 5.Wide material compatibility, primarily used for stainless steel, cold-rolled steel, and aluminum sheets. 6.Multi-axis concurrent linkage automates sheet metal bending, reducing dependence on molds and labor, effectively increasing production efficiency and lowering costs. High-speed bending, enabling intelligent, fully automated sheet metal processing from material feeding, rotation and positioning, multi-edge bending, to tool gap adjustment without manual intervention. Product Parameters

Model	BC-1200s	BC-1500s	BC-2000s	BC-2500s
Maximum bending width	1200mm	1500mm	2000mm	2500mm
Maximum bending height	170mm	170mm	170mm	170mm
Maximum bending speed	0.2 s/bend	0.2 s/bend	0.2 s/bend	0.2 s/bend
Minimum molding size	300*180mm	350*250mm	350*250mm	350*250mm
Bending capacity	Thickness lron plate 2mmStainless steel 1.5mm/Aluminum plate 3mm	Thickness lron plate 2mmStainless steel 1.5mm/Aluminum plate 3mm	Thickness lron plate 2mmStainless steel 1.5mm/Aluminum plate 3mm	Thickness lron plate 2mm)Stainless steel 1.5mm/Aluminum plate 3mm
Size of rotating suction cup	220*130~300*160mm	220*130~300*160mm	220*130~350*160mm	220*130~400*160mm
Maximum unfolding size of sheet metal	1200*1200mm	1500*1500mm	2000*1250mm	2000*1250mm
Rated voltage	380VAC	380VAC	380VAC	380VAC
Peak power	25KW	25KW	25KW	25KW
Average power	8KW	8KW	8KW	8KW
Noise	60dB	60dB	60dB	60dB
Dimensions	3010*1630*2400mm	3290*1890*2650mm	3860*2360*2650mm	4360*2860*2650mm
Total weight	6.5T	9T	12T	15T
CNC system	SL300-PCx	SL300-PCx	SL300-PCx	SL300-PCx
Minimum control unit	0.001mm	0.001mm	0.001mm	0.001mm
Maximum fast forward speed	120 m/min	120 m/min	120 m/min	120 m/min
Repeatable positioning accuracy	±0.005mm	±0.005mm	±0.005mm	±0.005mm
Arc bending function	Supports arc bending function	Supports arc bending function	Supports arc bending function	Supports arc bending function

FAQ 1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2. How to choose the right leveler?
You tell us the material, thickness, width, etc. of the sheet metal, and we will recommend it for you.
3.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
4.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
5.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.

6.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
