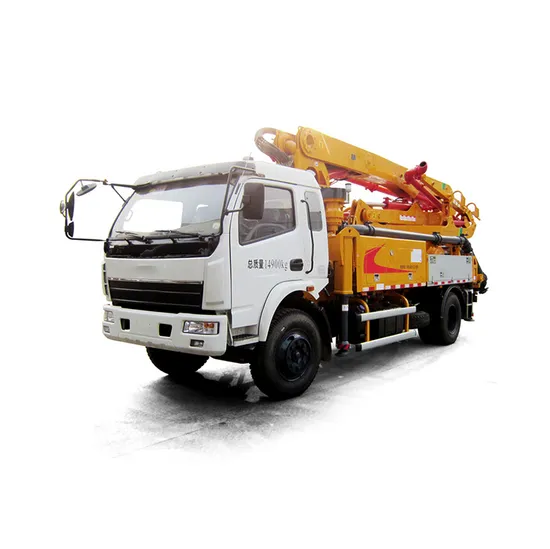

Top Brand Hb39K 39m Concrete Boom Pump Truck in Korea Hot Sale
Basic Info.
Model NO.
HB39K
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
130cbm/H
Feeding Height
37m
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Max. Vertical Conveying Distance
37m
Max. Horizontal Conveying Distance
32m
Transport Package
Nude Package
Specification
12000*2500*3900mm
Trademark
top brand
Origin
China
Production Capacity
15sets/Mon
Product Description
39m Truck-mounted Pump Machine HB39KV7 series truck mounted concrete pump is a new generation equipment which is developed by China and Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (230 mm) Φ, large displacement (108 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
| Description | Unit | Parameter value | |
| Outline dimension | mm | 10190×2500×3700 | |
| Overall weight | kg | 20000 | |
| Chassis | Model | ZZ5207M521GC1 | |
| Max. speed | km/h | 90 | |
| Max. grade-ability | % | 35 | |
| Wheelbase | mm | 5200 | |
| Tire | 11.00R20 | ||
| Engine | Model | MC07.28-30 | |
| Max. power | kW | 203 | |
| Max. torque | N·m/(r/min) | 1100/1200-1800 | |
| Displacement | L | 6.87 | |
| Emission standard | Eruo III | ||
| Pumping system | Theoretical output | m³/h | 100 |
| Concrete pumping pressure | MPa | 8 | |
| Theoretical pumping times | Time/min | 25 | |
| Delivery cylinder diameter ×stroke | mm | φ230×1600 | |
| Max. diameter of pumping concrete | mm | 40 | |
| Filling height | mm | 1550 | |
| Concrete slump range | cm | 8~23 | |
| Placing boom | Reach height | m | 29.6 |
| Reach depth | m | 18 | |
| Slewingradius | m | 25.7 | |
