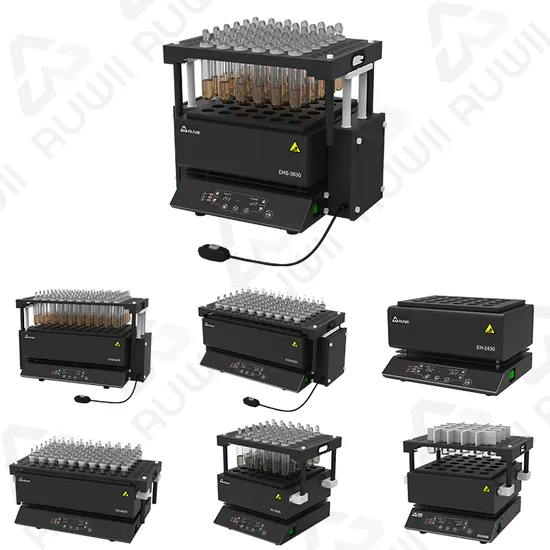

Eh Anti-Corrosive Graphite Digestor

Product Description

Anticorrosive Graphite Digestor is a sample preparation device can work in a high-concentration acid mist environment. It can support up to 60 samples at the same time to fully meet the needs of batch sample processing. Step temperature control and automatic sample lifting function can automatically complete the work steps of digestion, acid evaporate, cooling, etc., to minimize the experimenters contacting acid gas.
Multiple protection-Anti-corrosion & DurableWireless control--Safe & Easy to operateSupports normal operation and wireless control.APP control software based on the Android system can remotely control the equipment by the mobile terminal. Digestion process can be easily completed without opening the fume hood window, better protecting the experimenter's health.Homogeneous Heating--Synchronous Digestion○Uses unique uniform temperature heater. Sample heated by isostatic pressing graphite body. Brings faster heating speed, uniform temperature between the digestion holes, and longer service life.
Automatically lift and down --Protect the samples
Sample automatically lifted and dissipates heatRack automatically rises and dissipate the heat of samples once heating procedure finish, samples will not be destroyed by the residual heat due to user's ignored.
Sample is hovering near dryWhen the digestion is nearly complete and little sample remain, tubes can be lifted to an appropriate position so it can be easily observed till to nearly dry, avoiding sample destruction.
Observe the sample out from windowSample status need to be observed during the digestion process. The sample rack can be lifted by wire control switch or app software, and users can observe the samples through the fume hood glass.

Model	EH-2430	EH-1542
Digestion Block Dimension	DiameterΦ32mm,depth65mm	DiameterΦ44mm,depth65mm
Digestion Capacity	24	15
Temperature range (ºC)	Ambient~240ºC	Ambient~240ºC
Temperature stability (ºC)	±1.5ºC(@200ºC)	±1.5ºC(@200ºC)
Stage of temp. setting	20	20
power(W)	1800	1800
External Dimension (W×D×H)mm	350×320×230

Model	EH-3630	EH-2542	EH-1646
Digestion Block Dimension	DiameterΦ32mm,depth65mm	DiameterΦ44mm,depth65mm	DiameterΦ50mm,depth30mm(50mlSpecial for beaker)
Digestion Capacity	36	25	16
Temperature range (ºC)	Ambient~240ºC	Ambient~240ºC	Ambient~240ºC
Temperature stability (ºC)	±1.5ºC(@200ºC)	±1.5ºC(@200ºC)	±1.5ºC(@200ºC)
Stage of temp. setting	20	20	20
power(W)	2500	2500	2500
External Dimension (W×D×H)mm	450×420×300

Model	EHS-6030	EHS-4042
Digestion Block Dimension	DiameterΦ32mm,depth 80mm	DiameterΦ44mm,depth 80mm
Digestion Capacity	60	40
Temperature range (ºC)	Ambient~240ºC	Ambient~240ºC
Temperature stability (ºC)	±1.5ºC(@200ºC)	±1.5ºC(@200ºC)
Stage of temp. setting	20	20
power(W)	3500	3500
External Dimension (W×D×H)mm	720×420×310
