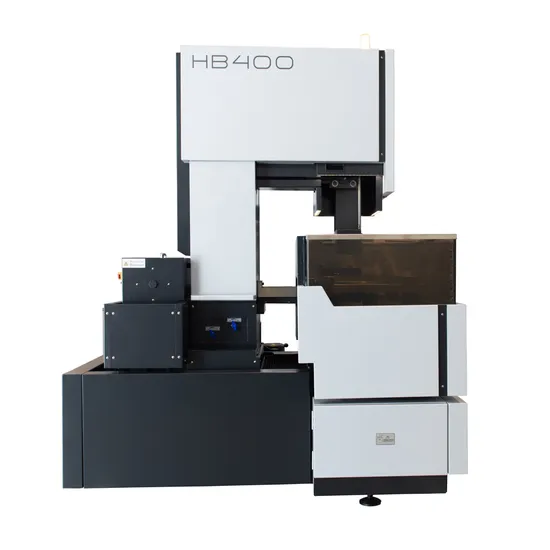

Hot Sale Metal Metal-Cutting CNC Tools Chmer CE Mould Machining Machine EDM

Product Description

Product Features
1.Multi-cutting function
2.Best roughness Ra<0.6um
3.Max.cutting speed hit 300mm2/min
4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting.
5.Professional high-quality industry computer and international brand parts makes the products good performance.
6.X/Y/U/V/Z adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance
7.High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation
8.High-strength resin castings ensure the machine body having enough rigidity and strength
9.Handy control Product Parameters

Machine type	HB800
Worktable dimension(L×W)	1710×935mm
Worktable travel(X×Y)	800×600mm
Max.part weight	2000kg
Max.workpiece thickness	500mm
Max.taper angle/height	±10°/100mm
Max.machining speed	300mm2/min
Max. machining currents	12A
Best roughness	Ra≤0.6µm
Diameter of wire	0.13~0.25mm
Machine tool dimensions(W×D× H)	2585mm×2535mm×2600mm
Machine weight	4000Kg

Detailed Photos
Four-axis (X, Y, U and V) AC servo integrating low-speed wire cutting technologyand combined with four-axis ball screw and linear guide brings unprecedentedaccuracy guarantee and substantially improves taper machining performance.
Protect Environment
Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area. The brand-new elevating manager make it more convenient to set work-pieces and greatly saving the space.
LED light
LED light with working indicator light, so you can check the equipment's running state at any time.
Two ways of wire threading
It meet different machining needs, and helps to change the guider much easier.
Centralized lubrication
Centralized Lubrication for screw of guide rails keeps workshop clean and tidy.

Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )
Forward-looking design concept and wide use of low-speed wire cutting technologies ensureunprecedented machining performance and realize machining reliability and consistency on thebasis of high efficiency.

Nonelectrolyte power supply technology
The titanium alloy minimizes thecontamination on the surface of materials through discharge controlnduring machining with nonelectrolytic power supply, preventing oxidation andiscoloration on the surface
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality
Maching Features

Elaborate Manufacturing

Sweeden Dealer Visit

Professional Afterservice in Sweeden
Professional Exhibition
Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.

Certifications
HB design get honor of IF DESIGN AWARD AND RED DOT AWARD IN 2017
CE CERTIFICATE FOR EUROPE MARKET
