Tri-Ring Compartment Garbage Truck China Manufacturers Rrr5180zxlst6 Van Garbage Truck

Product Description

TRI-RING Compartment Garbage Truck China Manufacturers RRR5180ZXLST6 Van Garbage TruckProduct Description
Box Garbage Truck
The box-type garbage truck is mainly composed of a car chassis, a box body, a door opening mechanism, a lifting mechanism, an electro-hydraulic control system, etc. It is a new type of fully sealed garbage transportation vehicle with integrated mechanical, electrical, and hydraulic structures. It can be used in conjunction with the LSY series garbage stations.
It is a new type of sanitation vehicle for municipal sanitation to collect, transfer, clean, and transport garbage, and avoid the leakage of garbage to form secondary pollution that affects the city's appearance.

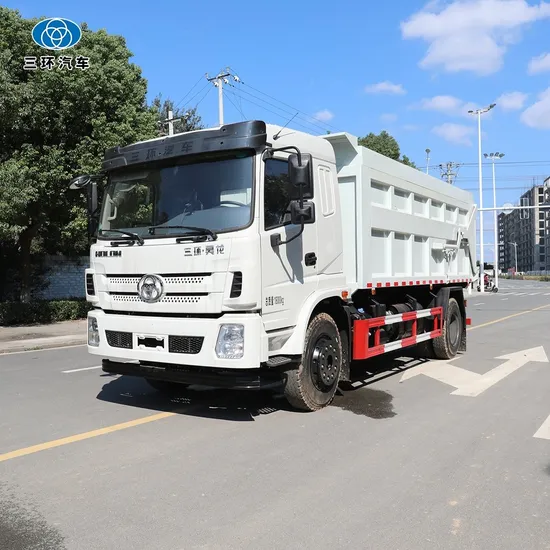

Multi-angle Display
Product Parameters

Box Garbage Truck
Manufacturing Company Name			Hubei Sanhuan Automobile Co., Ltd.
Vehicle Model			RRR5180ZXLST6 Box Garbage Truck
Basic Vehicle Parameters	Drive Type		4×2
	Total Mass (kg)		18000
	Curb Mass (kg)		8200
Vehicle Appearance Parameters	Length (mm)		8070
	Width (mm)		2550
	Height (mm)		3060
	Wheelbase (mm)		4700
Performance Parameters	Maximum Speed (Km/H)		89
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standard	Euro II, III, IV, V, VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd Weichai Power Co., Ltd.
		Displacement (L)	4.3L-6.2L
		Rated Power (kw)	162-180
Chassis Configuration Parameters	Cab	Type	Half-High Roof Comfort Version Cab
		Model	T280 (2.25 Wide)
		Standard Configuration	Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Sundries Box, Multi-Function Steering Wheel, External Sunshade
	Transmission	Gearbox Type	Manual, 8 Gears
	Front Axle	Type	Drum Brake
		Loadable Mass (kg)	3600
	Rear Axle	Type	Drum Brake
		Loadable Mass (kg)	10000
		Speed Ratio	5.143
Chassis Configuration Parameters	Frame	Cross-Sectional Dimensions (mm)	250×65×(6.5+5)
	Leaf Spring	Number Of Plates	9 Front Springs, 10+8 Rear Springs
	Tire	Type	Wire Tire
		Quantity	6
		Model	10.00R20-18
	Steering System	Type	Adopt A Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brake, With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Break
		Parking Control Type	Hand Brake Operation
	Electrical System	System Voltage	24V
		Battery	100AH Dual Battery
Top Configuration Parameters	Trash Bin	Applicable Trash Bin Size (mm)	5500X2300X1500
		Dump Lift Time (S)	≤45
		Dump Lower Time (S)	≤45
	Other Configurations	The Lifting Cylinder Is Produced By A Well-Known Domestic Hydraulic Parts Manufacturer, With Multi-Way Valve Hydraulic Control, The Operator Manually Controls The Lifting And Lowering Of The Tailgate Of The Garbage Bin, And Has A Self-Unloading Function
Other Configuration		Warning Triangle, Tool Kit, ABS, Air Conditioning.

Detailed Photos
Good Sealing Performance.
It is the basic requirement to ensure that there will be no dust or leakage during transportation.Good Safety Performance.
The closed box cover cannot exceed the vehicle body too much, which will affect normal driving and form a safety hazard. The modification of the whole vehicle should be reduced to ensure that the center of gravity of the vehicle remains unchanged when loaded.Easy To Use.
The top cover system can be opened and folded normally in a short time, and the cargo loading and unloading process is not affected.Small Size And Light Weight.
Try not to occupy the internal space of the box body, and the deadweight should not be too large, otherwise it will cause a decrease in transportation efficiency or overloading. The reliability is also good, and the service life and maintenance cost of the entire closed box cover system will be affected.
Working Principle Of Box Garbage Truck
Working Principle: Garbage is poured into the garbage bucket in the garbage bin, the scraper of the compression mechanism opens, and after the compression mechanism descends to the end, the scraper collects the garbage, and the compression mechanism goes up to press the garbage into the box, and the push plate in the box and the compression mechanism work together to compact the garbage. The compression mechanism repeatedly presses the garbage to a certain extent and uses the belly plate to push the garbage into the box to further compact the garbage. When the compression mechanism can no longer press the garbage into the box, it means that the box is full of garbage.Technical Drawing
One-stop Service Process
1. Consultation and demand confirmation
2. Quotation
3. Contract signing
4. Deposit payment
5. Production and delivery
6. Balance payment
7. Shipping and logistics
Company Profile
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 40 years of experience in research and development, design, and manufacturing in China.
Q 2: How long is the delivery time for bulk orders?
A4: It depends on the order quantity. Generally, the delivery time is 15 to 40 working days. Please contact us before placing an order.
Q3: Do you provide OEM/ODM services?
A4: Yes, we accept OEM/ODM.
Q4: Can I customize transportation vehicles of various models?
A4: Yes. We have the most advanced modern production equipment and manufacturing processes. We can make products according to your special requirements.
Q5: How do you guarantee quality?
A5: Yes. We strictly control the quality of raw materials and finished products according to the ISO9001 quality control system. We guarantee that all products are 100% qualified.
Q6: How will you deliver my order?
A6: Generally, different shipping methods are adopted according to the quantity, volume, and weight of the order. For orders weighing 1 to 200 kilograms, we recommend air freight. For bulk orders, we will ship by sea. It depends on the specific situation. We will compare and find the best solution.
Q7: What's your MOQ?
A7: One Unit Trailer or Truck.
