Taijia Crack Width/Depth Measurement Instrument/meter/gauge,concrete crack width Tmeasurement Crack detector

Product Description

Product Description

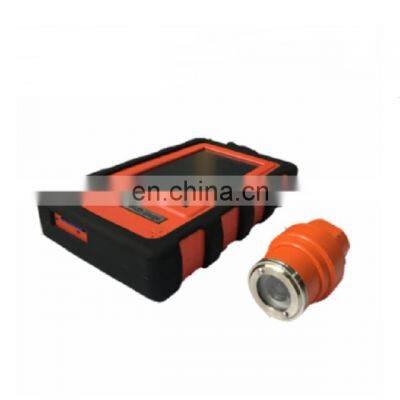

Product DescriptionNDT testing equipment crack width gaugeBJQF-1 crack width gauge is mainly used for the accurate detection of bridges, tunnels, buildings, concrete pavement, metal surface and so on. The system can automatically capture the image of cracks and real-time display crack images and their width data.The image data can be saved automatically.BJQF-1 crack width measurement Features1. Smart detection mode, crack position without adjustment2. Scale testing method, it is convenient to detect the same crack several times and compare the testing data3. Standard probe and high grade probe;4. Save crack images quickly with the snapshot button;5. 4GB large-capacity SD card can store more than 100,000 data, powered by lithium batteries;ItemBJQF-1 crack width gaugeHardware PlatformEmbedded ARM9 Hardware PlatformOperating SystemWinCe5.0ScreenTrue Color TFT Touch ScreenRangeStandard Probe: 0.01mm~6.5mm;Accuracy Standard Probe≤±0.02mm;Image Storage FormatImage Storage FormatPower SupplyRechargeable Lithium BatteryWorking Time≥28 HoursOperating temperature-10°C~+50°CHumidity≤90%RHDimensions180mmx100mmx50mmDetailed ImagesOperation MethodInterface of crack measureing software runningThe software automatically enters intelligent testing mode and shall display the measuring results of current crack.intelligent testingScale testingAccurate testingPacking listBJQF-1 Crack width gauge ×1UnitSpecial crack measurement and processing software package ×1UnitDetector Head×1 PairManual ×1UnitRelated ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.HT-225W+ integrity voice report digital concrete rebound hammerHT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.Company ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonicmeasurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thicknessmeter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615998537470Skype:tmeasurement02web:/
