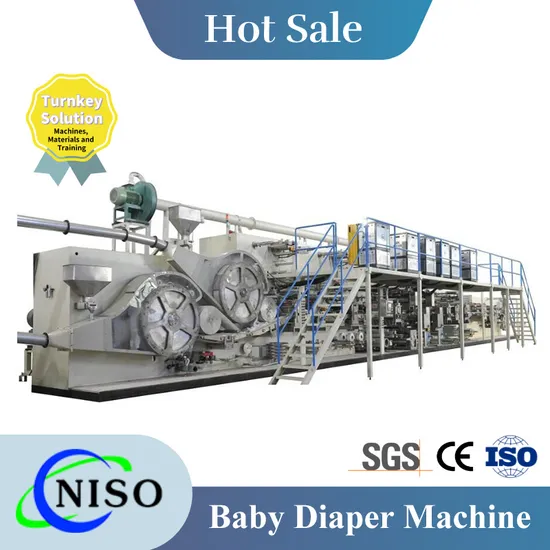

Servo High Speed Quality Baby Diaper Making Machine with Warranty

Product Description

We cordially invite you to visit our booth at the next Exhibitions in 2023,
join us as we shape the future of the hygiene sector together !
Product Description Servo High Speed Quality Baby Diaper Making Machine with Warranty
Parameter of Baby Diaper Machine

model	driven mode	speed(PCS/MIN)	weight(T)	capacity	machine size(L*W*H)
YNK500SV	full servo driving	500-600	105	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	79	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	62	190kw	27*8*5.5m

Functions and features of baby diaper machine:
1)The machine can produce 4 sizes of I shape, T shape baby diapers.
2)Crusher system adopts hard alloySaw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system ,with long fiber and better absorbent capacity.
4) SAP feeding adopts frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5)The machine produce I shape or T shape type baby diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system
c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f)Side tape inner-folding system
g)Arc shape cutting system
h)Product vertical folding and product final cutting system
i) Product arranging-out.
Optional device:
1:Perfume spraying unit
2:Wetness display function

Main technical parameters of baby diaper machine
1) Model: YNK450-HSV
2) speed: 400-450m/min
3) capacity: 330KW (380V 50Hz)
5) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(31*8*5.5)M(L×W×H)
8) Machine weight:28.5T
9) Air compressor:1.5m3/min
10) Product size: S, M, L,XL,
11)Container:2x40HQ
What materials need to be prepared for the production of baby diapers
Other raw materials of sanitary pads& diapers available:
1.PE film and cloth-like film materials
2.PP/MAGIC Side/Frontal Tape
3. Hot-melted glue(Spandex/Structure)
4.FLUFF PULP(treated/untreated,SAP)
5.Jumbo tissue paper(Upper/Lower Tissue Papdsxer)
6.Non-Woven (Topsheet-Hydrophilic N.W./ leakage-Hydrophobic N.W.)
7.Spandex
8.Release tape for sanitary napkin
9.Released paper (winged/back of sanitary pad)
10.Sap absorbent paper
11.Outside PE bags/Polybags
12.Elastic waistband
13.ADL
Company Profile
Our Mission: Helping the aged,woman & children around the world.Providing healthy,safe& hygienic quality raw materials.
Our Vision:To be a highly visible,trusted & integrated service company in the hygiene industry, assisting customers to grow at a rapid pace.
Sense of worth:
Customers first, employees second
Be simple, beacuse trust
Make small but daily progress, Quantity Breeds Quality
Achievement customer, Achievement youself
Our Services
Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to install, test the machine and train your workers
.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
4. Life-long after-sales service for machines.
Why choose us?
1. Quanzhou Niso Industry Co., Ltd. is a professional supplier of raw materials and making machines of sanitary products all in one. It covers an area of 5000 square meters. We have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
2.We can do full support for your complete project, from machine's manufacturing and installment, supplying raw materials, designing your factory layout, workers training to final production.
3.We have served customers from over 100 countries in the world till now.
4.We can offer you very good machines and service at good price. (we have our own parts processing workshop)
5.We are factory manufacturer, not trading company.

Frequently Asked Question
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.
Q: How long can I get the machine?
A: we will begin to make your machine once we receive your 30% down payment. around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.
All your enquiries will be replied within 24 hours!
