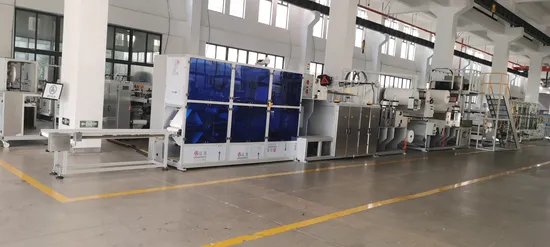

Disposable Nursing Pad Making Machine for 5-Layer Material

Product Description

Disposable Nursing Pad Making Machine for 5-Layer Material
PERFORMANCE CHARACTERISTICS: Touch-control, PLC program control, replace only need to enter the length of the data can be extremely simple. Easy to operate. Adopts stepless control of the governor which can adjust the thickness and weight . The cotton core pattern repression does not fall off, clearly and firmly. The cotton core can be added to the polymer(SAP) quantitative add, weight adjustable. This machine is full servo motor control, the length of any adjustable, high precision. Folding size:Length folding:1/2 or 1/3 (one machine only fit for one folding size ) The machine can produce toilet paper, laid paper, wood pulp, cotton mattress absorber.
TECHNICAL PARAMETERS: Power Supply:380V/50HZ Power:80kw(Include a hot melt glue machine) stable Speed:0-50m/min Dimension:20000*5000*3500mm Weight:15t Yung press:≥0.6mpa 1.2m³/min Specifications:Width(300-800mm),Length(400-1500mm)
COFIGURATION INSTRUCTIONS:
1.20kg Hot melt glue machine :1set(Made in China)
2.Full servo motor:8 sets(Taiwan)
3.Discharge air craft:5pieces
4 other Motor: Made in China
5 Touch screen: Taiwan
6. Motion Controller: Taiwan
7 Low Voltage: Made in China
8 Bearing: Harbin
9 cylinder valve: Made in China
10 Belts: Made in China
SPARE PARTS:
1.Before cutting blade:2 pieces
2.After cutting blade:2pieces
3.Wrench:1set
4.The air craft inflatable device:5sets
