Versatile 500kg Per Hour Plastic Milling Machine for Diverse Uses

Product Description

Applications:The SMP plastic milling machine excels in transforming PVC regrind, playing a vital role in pipe and profile recycling. It collaborates seamlessly with shredders and granulators, creating a harmonious and efficient system tailored for managing in-house production waste. Additionally, when it comes to PE grinding for Rotomolding, the PM Pulverizer is indispensable in the production process, crafting the essential powder for this application. To guarantee the correct output size, distribution, and flow properties of the ground material, a screening machine becomes an integral part of the process, ensuring quality and precision.
Technical Specifications:

Model	SMP-300	SMP-400	SMP-500	SMP-600	SMP-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

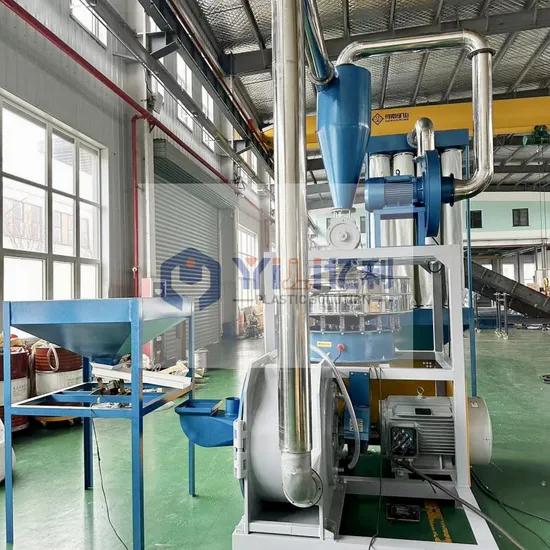

General descriptionOur Waste Plastic Pulverizer Machines range in disc diameter from a compact 300 mm to a robust 800 mm, offering high-speed, precision grinding for medium-hard, impact-resistant, and friable materials. Materials destined for pulverization are introduced centrally into a vertically fixed grinding disc, which is meticulously aligned with an identical high-speed rotating disc. Through centrifugal force, materials travel through the grinding area, with the resulting fine powder efficiently collected via a blower and cyclone system. Tailored to specific applications, these machines can feature either one-piece grinding discs or segmented grinding options, ensuring versatility and adaptability. Technical Features: 1. Our groundbreaking disc design boasts unparalleled quality and durability, offering double the lifespan of standard grinding discs.
2. Newly engineered professional bearings offer superior high-speed rotation, coupled with a singular drive motor to enhance grinding efficiency, significantly reducing operational time and simplifying engineering controls.
3. Enjoy hassle-free installation and maintenance, with easy access for quick cleanup simply by opening the door.
4. Benefit from a fully enclosed milling process, ensuring no dust escapes, maintaining a clean working environment.
5. Experience the convenience of a fully automated system, from feeding to discharging and sorting, streamlining operations.
6. Fine-tune the grinding gap effortlessly with a feeler gauge and adjustable bolts, ensuring precise control over your milling process.
7. Our mill features a dual cooling system utilizing both water and wind for optimal temperature management.
8. Customize your milling experience with a broad array of optional accessories, allowing bespoke solutions aligned with your budget and specific processing needs.
Advantages: Effortlessly fine-tune the cutting gap to match your precise needs, ensuring optimal performance.
Choose between innovative disc or segment options to suit your specific machining requirements.
Achieve high throughput with minimal drive power, optimizing energy efficiency.
Experience the forefront of design with our innovative and efficient engineering solutions.
Explore a comprehensive selection of accessories, providing flexibility and customization.
Maintain seamless temperature control, ensuring consistent performance and reliability.
