High Precision Auto Feed Drilling Machine Z5150A Z5150b Z5140A Z5140b
| US$2,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5150A Z5150B Z5140A Z5140B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Driiling Capacity
50mm
Max.Spindel Travel
250mm
Spindle Bore Taper
Morse 5
Spindel Speed
31.5-1400rpm
Motor Power
3kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description

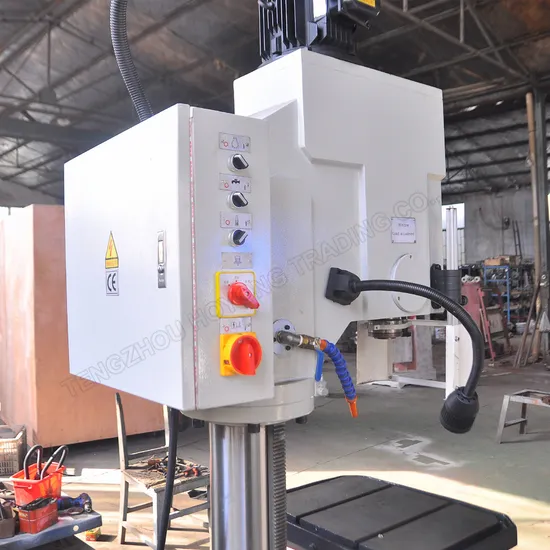

SQUARE COLUMN VERTICAL DRILLING MACHINE FEATURES:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming,
etc.The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance
and operation.
SPECIFICATION
| SPECIFICATION | UNITS | Z5150A | Z5150B |
| Max. drilling diameter | mm | 50 | 50 |
| Spindle taper | morse | 5 | 5 |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel | mm | 200 | 200 |
| Number of spindle speeds | step | 12 | 12 |
| Range of spindle speeds | r/min | 31.5-1400 | 31.5-1400 |
| Number of spindle feeds | step | 9 | 9 |
| Range of spindle feeds | mm/r | 0.056-1.80 | 0.056-1.80 |
| Table size | mm | 560×480 | 800×320 |
| Longitudinal(cross) travel | mm | / | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max.distance between spindle and table surface | mm | 750 | 750 |
| Motor power | kw | 3 | 3 |
| Overall dimension | mm | 1090×905 ×2465 | 1300×1200 ×2465 |
| Machine weight | kg | 1250 | 1350 |
