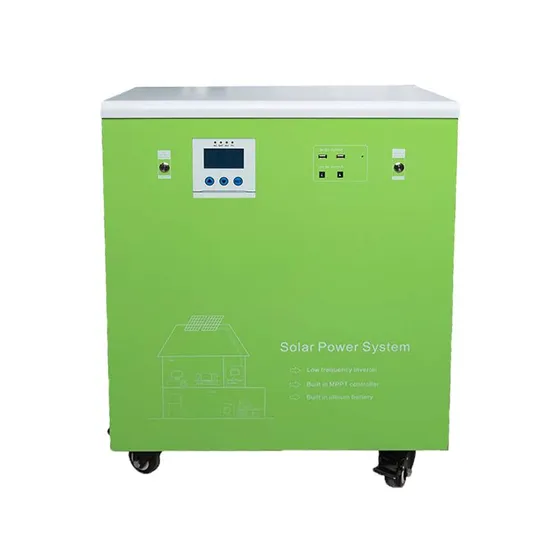

2000 Watt 3000 Watt 5000 Watt Portable Solar Generator

Product Description

2000 watt 3000 watt 5000 watt portable solar generator
Product Features

1.All in one design: inverter, controller and battery all built-in, easy to use and install.
2.Continuous stable pure sine wave: no loss to load.
3.Hybrid mode: can be charged by solar as well as grid, charging time is around 2-3 hours.
4.LiFePO4 battery: 10 years lifespan.
5.Multiple outputs: 220V/110V AC, USB DC,12V DC.
6.Multi-protection: Overload, overvoltage, lowvoltage, high temperature, etc...
Wiring Diagram
Product Details
Specifications

Model		WON-SESS-AP500W	WON-SESS-AP1500W	WON-SESS-AP3000W	WON-SESS-AP6000W
Solar Panel	Solar Panel(Optional)	100W18V*2pcs	250W36V*3pcs	300W36V*4pcs	300W36V*8pcs
	Lifespan	25years
	Solar Controller Charging Mode	PWM	MPPT
	Power Generation	about 700WH/day	about 2600WH/day	about 4200WH/day	about 8400WH/day
	Size	1068*640*35mm	1650*992*35mm	1956*992*40mm	1956*992*40mm
	Weight	10KG/pc	16KG/pc	19KG/pc	19KG/pc
Inside MPPT controller Frequency Inverter integrated control system	Battery Type	Lead acid /lithium battery/Iron lithium battery
	Battery Capacity	640WH	2176WH	4352WH	8704WH
	Battery Lifespan	6 years
	Battery Warranty	2 years
	Rated Power	500W	1500W	3000W	6000W
	Work temperature	- 10ºC- 40ºC
	Accessories	15m Photovoltaic cable +10m AC plug
	Product Size	430*235*300mm	585*310*505mm	585*310*505mm	680*315*732mm
	Net weight	22KG	40KG	55KG	98KG
Accessories	15m Photovoltaic cable +10m AC plug

Solar Panels

- High efficiency A Grade mono cells, 300W
- 21% conversion efficiency
- Anti-reflection tempered glass
- Anodic aluminium-alloy frame
- MC4 junction box
--------------------
Wonderful Solar Power Generator
- MCU intelligent control technology- Settable the mains mode
- Controlled by intelligent fan
- Pure sine wave AC output
- LCD display
- Automatic protection
- Overall automatic protection and alarms including AC output overload protection, short circuit protection.
------------------------------------------
Mounting Structure

- Pitched Roof, flat roof, tile roof, tin roof,
ground, vertical wall
- High Class Anodized Aluminum
- Wind Load: up to 130mph (60m/s)
- Snow Load: up to 30psf (1.4kN/m2)
------------------
Connection Cable

Accessories: 15m Photovoltaic cable +10m AC plug
----------------------
