Automatic Plastic Water Juice Bottle PVC Label Sleeve Heat Shrink Labeling Machine

Product Description

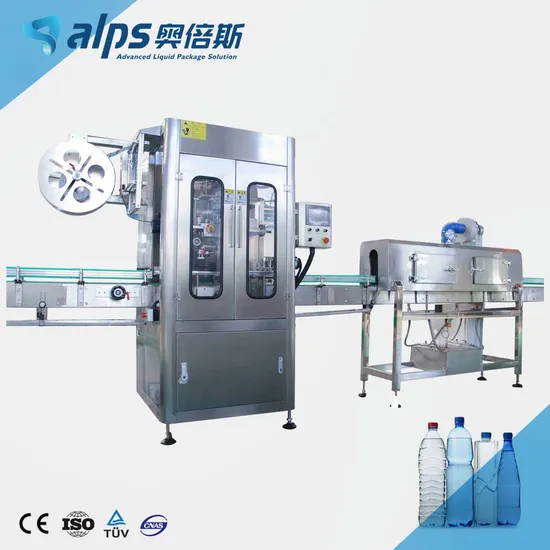

Automatic PVC Sleeve Heat Shrink Labeling Machine
Introduction:
This shrink sleeve labeling applicator function is for PVC label shrink on the bottle ,used for beverage bottle package solution ,international advanced technology ,cover the circle label on PET bottle ,And then hot shrinking to fix on the position which bottle body designated. Product Description

The machine's structure is compact,and suitable for the production line of different direction and different height ,The machine part adopts combination designing of modularization ,and make the machine reasonable ,the height adjustment adopts motors fluctuating,it is convenient to replace the material ,The special cutter head designing ,make the film rolling cut more exactly and reliably.
Technical parameter:

Model	SLM-150B	SLM-250B	SLM-250D
Labeling heads	1	1	2
Capacity (500ml/bottle/min)	0-150	150-250	150-250
Rated Power	2KW	2.5KW	3.5KW
Suitable Bottle Diameter	φ48-96mm
Suitable Label Height	30-250mm
Label Thickness	0.03-0.13mm
Applicable internal diameter of paper tube	5"-10"mm(Adjustable)
Machine Size	2000*850*2000mm	2000*850*2000mm	3000*1200*2070mm

Detailed Photos

1, the machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.
2, the feet bolt is not fixed, easy to move suitable for different place.
3, the shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10
4, the applicable bottle is the machine square bottle and round bottle
5, without tools, the driven machinery can be adjusted to meet different bottle size
6, particular inserting label ways, i.e. inserting label, it is reasonable and convenient.
7, full automatic feeder, the flat shrinking and tension are adjusted together.
8, it is assured to low error that there is inspection of rolling label cut.
9, particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10, it is easy to change the central clamping device without any tools.
11, oriental rolling label device can be lifting synchronal.
12, the separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.
13, adopting Schneider servo motor made in France and sensitive photo electricity, to insure the precision of cutting label.
14, stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15, adopting advanced machine automatic controlling technology, main component adopts famous brand.
Machine Details Description:

	Sleeve Labeling Machine Application: PVC / PET / OPS label sleeve * Stainless steel Main Machine Frame / Famous electrical components (SIEMENS Plc controller ,Inverter ,Mitsubishi Motor )
Shrink Tunnel Application : Label Shrink by Steam or Electric heating *Stainless steel full cover body *Water proof design *Easy adjustment for different bottle sizes *Even shrink with good steam pressure control
	Steam generator Application : To provide steam for shrink tunnel *Full automatic steam pressure control *Automatic water feed system *High quality heating tube *water softner as optional
PVC / PET / OPS Shrink label Application:food, beverages, mineral water and daily products. PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%; PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;

Main components:

FAQ

1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment system manufacturer and small bottle water filling & packing machinery with about 10 years experience. Factory covers an area of 12000 square. There have been more than 50 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Donglai town,Zhangjiagang city,Jiangsu province,China. about 2 hours away from PVG Airport . All clients are warmly welcome to visit us !
3.How about installation ?
We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and USD100 / day/person.
4.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale service
5.Q:What is the features of our company?
A: We provide turnkey project for customers, including sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
