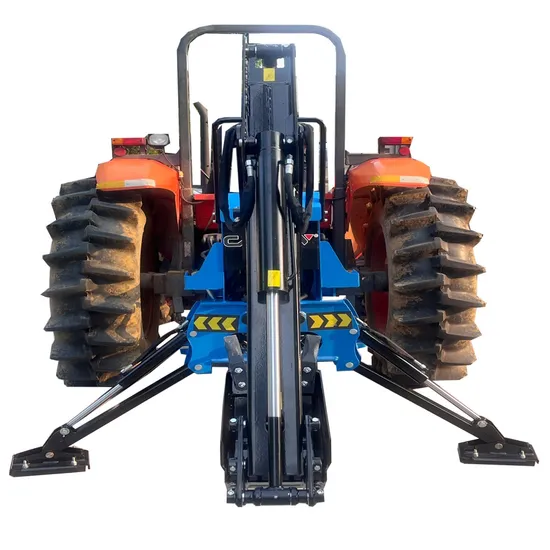

Farm Tractor Backhoe Digger 3 Point Hitch Backhoe

Product Description

Product Description
A backhoe digger, also known as a backhoe loader, is a heavy equipment vehicle that combines a loader and an excavator into one machine. It's commonly used in construction and urban engineering projects because of its versatility and relatively small size.
Here are some features of a backhoe digger:
Front loader
A large bucket and loader arms on the front of the machine for scooping and lifting materials
Backhoe
A long arm with a bucket on the end for digging trenches, holes, and foundations
Attachments
Backhoes can swap out attachments, such as a pallet fork for moving materials or a combo bucket for dozing
Travel speed
Backhoes can move quickly down the road, so they don't need to be trailed as often

Here are some tips for operating a backhoe digger:
Check the fluid levels before starting the machine Warm up the engine before starting operation Make sure all attachments are elevated off the ground before moving the machine Raise and lower the stabilizers using the auxiliary controls Position the outrigger stabilizer arms on the ground before digging
Features:
-Side-shift boom
-Suits all types of tractors with1 or 2,3-point linkage kit
-Joustick style control console
-Tough and reliable hydraulic arm
-Individially controlled support legs
-Boom lockout pins for transport

MODEL	BHS-175	BHS-195	BHS-225
Tractor HP	25-30hp	30-45hp	45-60hp
3-point linkage	Cat-1	Cat-1	Cat-1
Structure Weight	520kg	560kg	750kg
(A) Working length	2600mm	2900mm	3300mm
(B) Digging Depth	1750mm	1950mm	2250mm
(C) Extend height	3120mm	3170mm	3450mm
Unload height	1800mm	2000mm	2300mm
Leg Spread	1700mm	1700mm	1700mm
Swing Angle (Boom)	180°	180°	180°
Bucket Width	300mm	300mm	400mm

Packaging & Shipping

Our Advantages
We have a whole complete set of production equipment, so we can shorten the lead time and prices of machine.
We guarantee one year warranty of all our products.
We can produce machines according to any requirements from our customers.
We develop new machines every year.We provide gifts for all of our customers before every year's Christmas.
