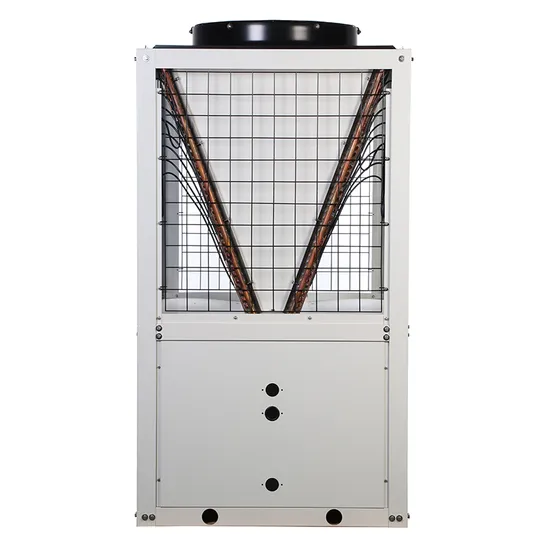

High Temperature Air to Water Heat Pump Water Heater for Middle East
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
HT3P--HT48P
Work Environment
Common Heat Pump
Heat Source
Air-source
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Certification
CE, ISO9001, CCC, SASO, TUV
Product Name
Air Source Commercial Use Heat Pump (Kfxrs)
Compressor
Copeland or Panasonic
Refrigerant
R134A
Heating Capacity
8~130kw
Rated Produce Hot Water Capacity
115-2795L/H
Rated Input Power(Kw)
2.19~35.81kw
Power Supply
3n 380V/50Hz
Rated Hot Water Output Temp.
75 Celsius Degree
Max. Hot Water Output Temp.
80 Celsius Degree
Cop
3.65
Transport Package
Safety Export Packing
Specification
HT3P-HT48P
Trademark
KONNEN
Origin
Zhejiang, China( Main Land)
HS Code
8418612090
Production Capacity
1800 PCS Per Month
Product Description
KONNEN HIGH TEMPERATURE AIR SOURCE HEAT PUMP, AIR TO WATER HEAT PUMP, COMMERCIAL USE:
| * Panasonic compressor OR Copeland compressor with R134a refrigerant, |
| * Stainless steel 304 for all fasteners, for side covers of evaporator; |
| * Preservative oil for copper tubes and all important part of cabinet; |
| * Chinese No.1 brand "ND" shell & tube heat exchanger; |
| * Japan "Saginomiya" or "Sanhua" electronic expansion valve; |
| * "Sanhua" 4-way valve; |
| * "Schneider" AC contactor & Relay |
| * LCD controller; |
| * Delivery time: 20~25 days; |
| * Payment term: T/T 30% in advance and T/T 70% before delivery; |
| * Warranty time: 24 months after delivery. |
WE SUPPLY OEM SERVICE!
KONNEN NEW FACTORY(HEAT PUMP + WATER TANK + CONTROLLER):
WHY US:
KONNEN NEW PROJECTS:
WORLD FAMOUS BRANDS WE COOPERATED FOR OUR HEAT PUMPS:
KONNEN HEAT PUMPS LOADING:
PARAMETERS TABLE:
| A03H (High temperature air source heat pump water heater circulation type) HT-150307 | |||||||||||
| HT3P-T3 | HT5P-T5 | HT7P-T5 | HT10P-C24 | HT14P-C24 | HT20P-C48 | HT24P-C48 | HT30P-C48 | HT48P-C96 | |||
| Rated heating capacity | kW | 8 | 13.5 | 18 | 26 | 35 | 55 | 65 | 80 | 130 | |
| Rated input power | kW | 2.19 | 3.66 | 4.96 | 7.11 | 9.62 | 14.91 | 17.81 | 21.98 | 35.81 | |
| Rated input current | A | 4.14 | 6.92 | 9.37 | 13.55 | 18.17 | 28.17 | 33.66 | 41.54 | 67.69 | |
| Maximum input power | kW | 2.74 | 4.58 | 6.20 | 8.89 | 12.02 | 18.63 | 22.26 | 27.47 | 44.77 | |
| Maximum input current | A | 5.34 | 8.92 | 12.09 | 17.33 | 23.44 | 36.33 | 43.41 | 53.57 | 87.29 | |
| Performance coefficient(COP) | / | 3.65 | 3.69 | 3.63 | 3.65 | 3.64 | 3.69 | 3.65 | 3.64 | 3.63 | |
| Rated hot water output temp. | ºC | 75 | |||||||||
| Maximum hot water output temp. | ºC | 80 | |||||||||
| Rated hot water produce capacity | △t40 | L/H | 172.0 | 290.3 | 387.0 | 559.0 | 752.5 | 1182.5 | 1397.5 | 1720.0 | 2795.0 |
| △t60 | L/H | 114.7 | 193.5 | 258.0 | 372.7 | 501.7 | 788.3 | 931.7 | 1146.7 | 1863.3 | |
| Power supply | 3N 380V/50Hz | ||||||||||
| Compressor | Type | Fully closed scroll type | |||||||||
| Start Mode | Directly start | ||||||||||
| Quantity | Set | 1 | 1 | 1 | 2 | 2 | 4 | 2 | 3 | 4 | |
| Water side heat exchanger | Type | Shell & coil(tube) heat exchanger | |||||||||
| Water flow | m3/h | 1.4 | 2.3 | 3.1 | 4.5 | 6.0 | 9.5 | 11.2 | 13.8 | 22.4 | |
| Water Pressure Drop | kPa | <50 | <55 | <57 | <60 | <60 | <65 | <65 | <65 | <65 | |
| Pipe size | mm | DN20 | DN25 | DN25 | DN32 | DN32 | DN50 | DN50 | DN50 | DN80 | |
| Protections | 1. High pressure and low pressure protection, 2. Anti-freezing protection, 3. High temperature protection, 4. Too big of the water temperature difference for outlet and inlet protection, 5. Overload protection, 6. Lack phase protection, 7. Reverse phase protection, etc.. | ||||||||||
| Refrigerant | Type | R134a | |||||||||
| Throttle Type | Electronic expansion valve | ||||||||||
| Quantity | kg | 2.1 | 3.3 | 4.3 | 2.8×2 | 4.1×3 | 3.2×4 | 7.6×2 | 6.2*3 | 7.6×4 | |
| Noise | DB(A) | ≤55 | ≤63 | ≤65 | ≤65 | ≤68 | ≤70 | ≤72 | ≤73 | ≤78 | |
| Unit Dimension | mm | 700×680× 875 | 860×820× 1080 | 860×820× 1080 | 1000×1000×1858 | 1000×1000×1858 | 1000×2050×1900 | 1000×2050×1900 | 1000×2050×1900 | 2000×2050×1900 | |
| Package Dimension | mm | 788x768x940 | 898x898x1140 | 898x898x1140 | 1100x1100x1880 | 1100x1100x1880 | 1080x2130x 1940 | 1080x2130x 1940 | 1080x2130x 1940 | 2028x2220×1940 | |
| Net Weight | kg | 100 | 170 | 190 | 310 | 410 | 605 | 650 | 835 | 1250 | |
| Testing conditions: | |||||||||||
| 1. Application side initial water temperature: 15ºC, end temperature 75ºC, max. temperature 80ºC. | |||||||||||
| 2. Ambient temperature dry bulb 20ºC, wet bulb 15ºC. | |||||||||||
| The above parameters are based on Refrigearnt R134a, for parameters based on other refrigerant please contact us. | |||||||||||
| The above parameters may have some differences from the final product because of products updating, so above information is not the provision of any business contract. Please refer to final product label when buy, or refer to us for any information. Our company keeps the right to interpret. | |||||||||||
