Large Capacity Double Piston Continuous Screen Changer for Plasticextrusion Machine

Product Description

Large capacity double piston continuous screen changer for plasticextrusion machine
GM-DP-L series
Benifits
1,Leak-free mold
2, continuous type means no shut-down the working machine when changing the screen
3, large screen area meets the customer high yield device.
4, delay the screen change interval, reduce the labor intensity.
Features of this kind of screen changer
Compared with the traditional double piston continuous screen changer, the filter screen area of this kind of screen changer is far lager .
the filter screen does not carried by the breaker plate, but wrapped on the slide bar which is full of holes, you can see the pictures as follows.

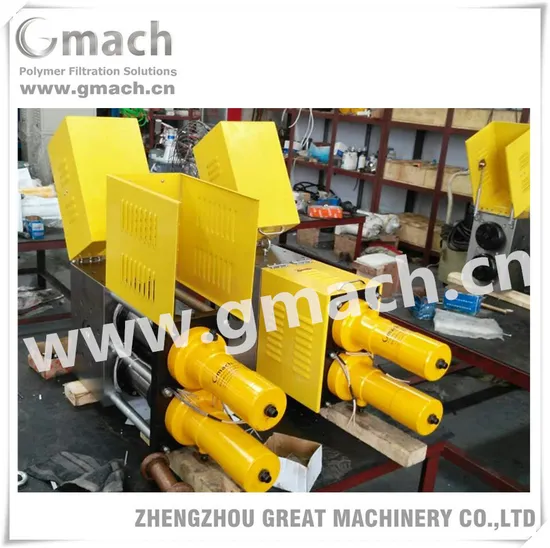

The finished product of this kind of large capacity continuous screen changer
Appliation fields
cast film (Bubble pack\ Medical\Food Wrap)
Sheet (Foam\Strapping\Plastic cardboard)
Coating (Hot melt adhesive)
Pipe (Corrugated\Gas Pipe) and profile
Compounding (Master Batch\filler)
Wire and cable extrusion
Tubing (Medical\ Industrial\Irrigation)
Fibers (Monofilament)
Pelletizing (strands and underwater)
Recycling of most polymers
Packaging
The inner packing : bubble wrap film
The outer packing :standard wooden case

Quality inspection
We take only first-class steel and check every production procedure to ensure every dimension is produced precisely. A final complete inspection will be executed before delivery.
Technical data

Type	Screen D&A		(mm) overall dimension				Heating power (KW))	Output (kg/h)
	(mm)	(CM²)	L	W	H	L1
GM-DP-L-100	251x80	200x2	220	200	320	810	3.5/4.7	450-1200
GM-DP-L-120	314x100	314x2	250	220	360	970	5.0/7.2	800-1800
GM-DP-L-155	408x130	530x2	320	270	450	1100	8.2/11.1	1000-2600
GM-DP-L-175	471x180	846x2	370	310	480	1320	9.4/12.7	2300-4400
GM-DP-L-195	533x190	1012x2	400	380	550	1470	10.2/13.8	2900-6000
GM-DP-L-220	596x200	1192x2	440	410	590	1620	13/17.5	3900-10000
Note: The specifications are subject to change without prior notice.
