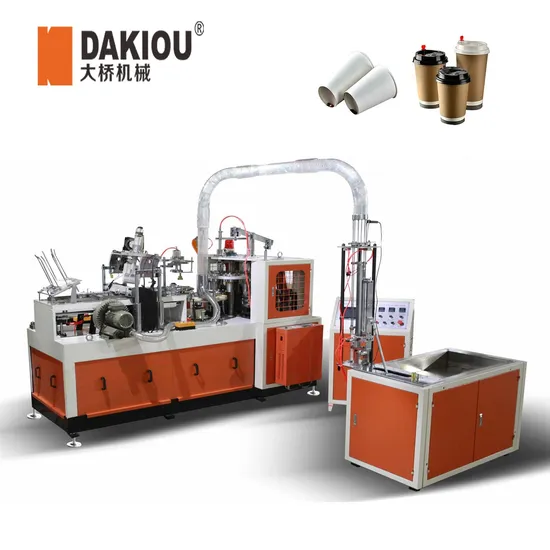

Zszb-D Dakiou Exclusive Fully Automatic Middle Speed Paper Tea Cup Manufacturing Making Machine

Product Description

Products description:
ZSZB-D model automatic paper cup forming machine is the latest model which use the high level technical to improve,use the interval paper feeding,ultrasonic(heater)sealing,robot hand cup body transfer,oilling,bottom punching,bottom folding,pre-heating,knurling,cup collection to form the cups,whole machine use the single shaft driving system,open cam system, and gear driving,automatic oil lubrication, machine use the sensor alarming system, it is a idea machine based on old model(three plates chain driving machine model)
Technical Specification:

Type:	ZSZB-D
Cup size:	2.5-12oz(if the cup is more than 12oz the machine designed more lager )
Suitable paper material:	150-380g/m2(single PE-coated paper)
Capacity:	70-90pcs/min
Power source:	380V 50HZ
Total power:	8KW
Weight:	2000kgs
Package size:	2200 x 1200 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
	A:top diameter: Min 45mm---Max 90mm B:bottom diameter Min 35mm---Max 75mm C:total height Min 30mm---Max 115mm D:bottom knurling depth Min 4mm---Max 12mm E:rim diameter Usually Φ2.5---Φ3

Main feature: 1.The capacity is increased to 60-70 cups per minute from 45-55 cups per minute.
2.Gear driving system is adopted instead of chain driving to avoid chain loosed and broken.
3.It adopts PLC system,HMI computer operation,sensor detecting system.All of the electrical equipments use LG from Korea.
4.The machine host uses automatic lubrication system.It is convenient to be well maintained and good for working life.
5.The bottom paper feeding is controlled by stepping-motor (or equipped with servo-motor) and sensor.The feeding length is adjusted quickly and accurately, and reduce paper waste.
Advantage and improvement: 1.Machine Driving System: New design: Gear driving system. The previous design: Chain driving system
2.Main motor: It used the gear speed reducer instead of gear reducer and motor separated,simplifying and stable transmission system.
3.Bottom feeding: New design: bottom feeding is controlled by stepping-motor (or equipped with servo-motor) to guarantee the quickly adjusted and accurately feeding.and sensor detection to control no cup tube no feeding.The previous design: bottom feeding is controlled by stepping-motor or unilateral bearing.
4.Operation System: New design:it adopts PLC control system and HMI computer operation.The previous design: machine operated by switch.
5.The lubrication system:The new design: It adopts automatic lubrication and lubricant circuit.The previous design: manual lubrication.
FAQ:
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins,from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs.We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
